Why this dossier exists
The MSI Titan 18 HX A14VIG is positioned as a top-tier workhorse: a laptop that should effortlessly handle heavy development work, multiple monitors, long sessions and intensive multitasking. At exactly that price and performance level, recurring instability is hard to accept.
This system was not written off after one bad day. BIOS, Windows integrity, storage, memory, thermals, virtualization, driver and filter layers, Event Viewer and crash dumps were all examined systematically. This page records that route factually, so the conclusion is traceable and does not rest on a gut feeling.
Purchase and support experience
The laptop was bought new through MM Online Nederland, the online arm of MediaMarkt. The purchase details are summarized below; privacy-sensitive fields (name and address details, full invoice and order numbers) have been deliberately masked.
A14VIG-041NL
The essence at a glance
The system sometimes runs stable for a long time and then, without a clear trigger, freezes completely, reboots or crashes.
EXCEPTION_ON_INVALID_STACK — an exception on an invalid kernel stack. Not an ordinary application fault.
The fault pattern fits firmware/EC, CPU/IMC, ACPI and power management better than a single app or driver.
Specifications of the system under investigation
| Component | Details | Investigation value |
|---|---|---|
| Model | MSI Titan 18 HX A14VIG-041NL | The system under investigation. |
| Processor | Intel Core i9-14900HX | Relevant to IMC, C-states, ACPI and power management. |
| Graphics | NVIDIA GeForce RTX 4090 Laptop GPU | Relevant to freezes, multi-monitor and DirectX errors. |
| Memory | 128 GB DDR5 (SK hynix) | A single faulty module unlikely; IMC load remains a factor. |
| Storage | 2× Samsung MZVL22T0HBLB-00B00 NVMe | Both disks reported Healthy. |
| BIOS / firmware | E1822IMS · revision 1.23.0.0 | EC/firmware remains a relevant, hard-to-test layer. |
| Operating system | Windows 11 25H2 · build 26200.x | Clean install from Microsoft media; integrity tests clean. |
Investigation timeline with evidence
Below, the case runs chronologically: from purchase to the worst crash. Each event is a verifiable moment; where imagery is available, it appears as clickable evidence at the step. The full screenshot collection is further down in the evidence gallery.
A top-tier laptop as a professional workhorse
The MSI Titan 18 HX A14VIG-041NL was ordered from MediaMarkt Online; the invoice and delivery are dated 5 June 2024. From day one it was used as a production machine for software development, local web servers, AI workflows, multiple monitors and heavy multitasking — exactly what a Titan is built for.

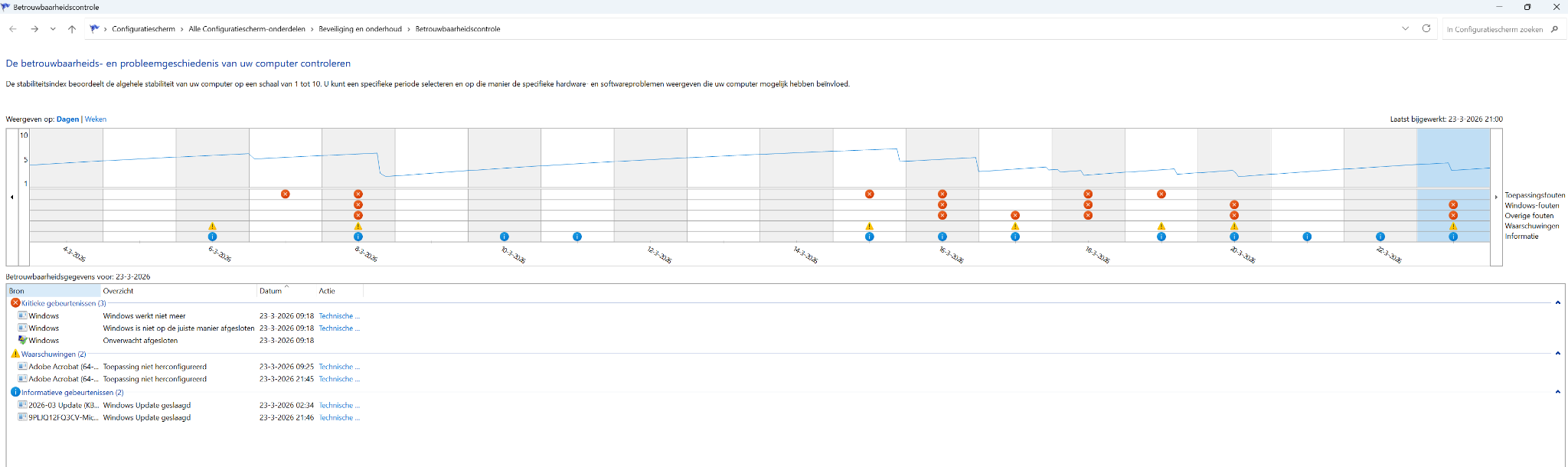

Unexpected shutdown — first critical event
Windows logged that the shutdown at 09:17:14 was unexpected. Reliability Monitor shows this as the first critical moment. A shutdown without a clean Windows exit immediately shifts attention to the kernel, a driver, power or the platform layer.
Bugcheck 0x0000000A — first minidump
The associated bugcheck was 0x0000000A (IRQL_NOT_LESS_OR_EQUAL) and Windows wrote minidump 032326-27984-01.dmp. This is not an application crash: Windows itself had to stop.
Standard configuration, no third-party drivers
As a baseline check it was recorded that nothing exotic had been changed: all drivers came from MSI or Windows itself, only normal work software was running, and a MemTest86 memory check was planned. That immediately weakens "a strange third-party driver" as a simple explanation.
Recurring DirectX error on exclusive fullscreen
A recurring message pointed to dx12_swapchain.cpp (line 238): "Exclusive full screen mode is not available", during split screen with two extra monitors. That makes the GPU driver and display stack a relevant line of investigation.

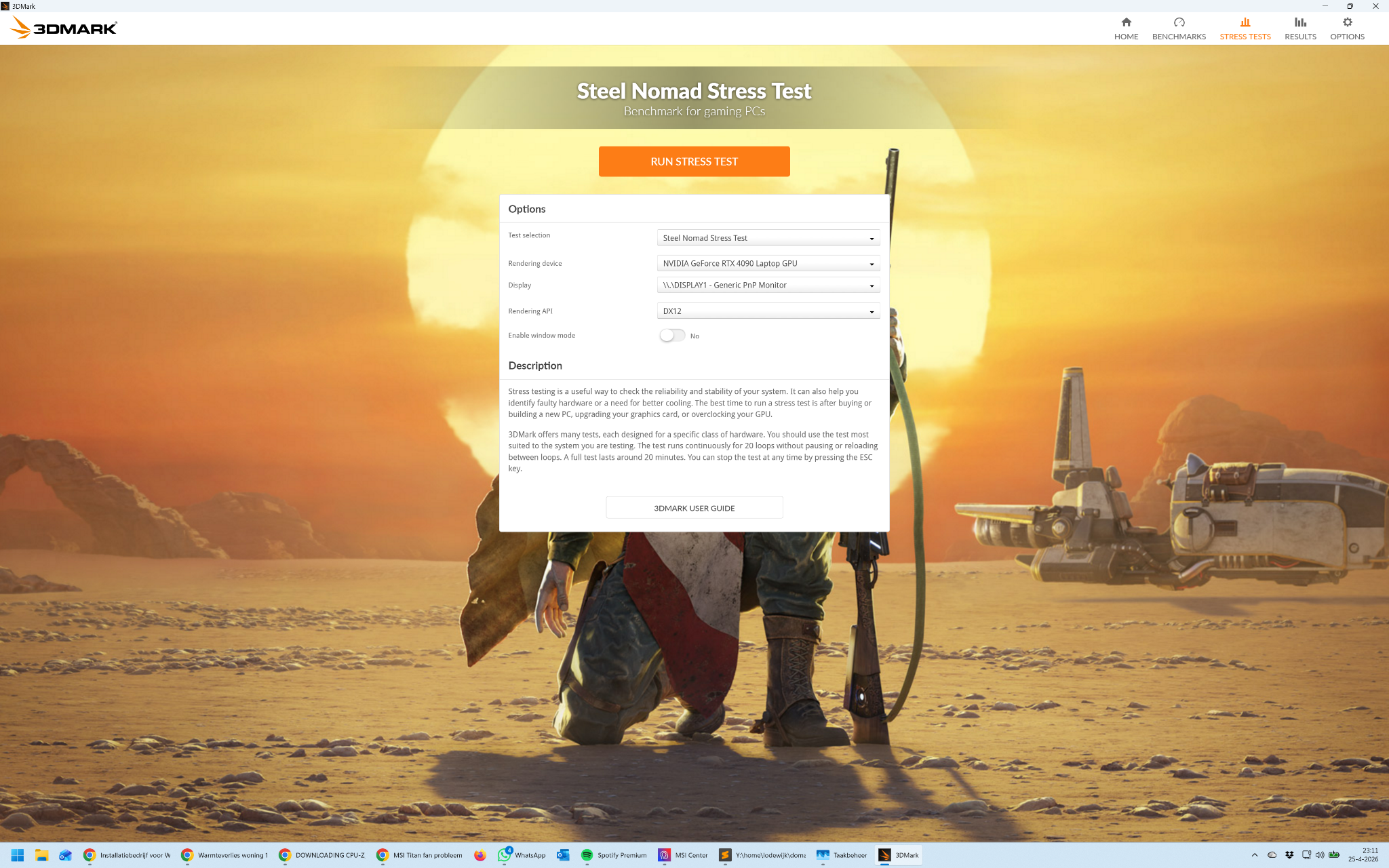

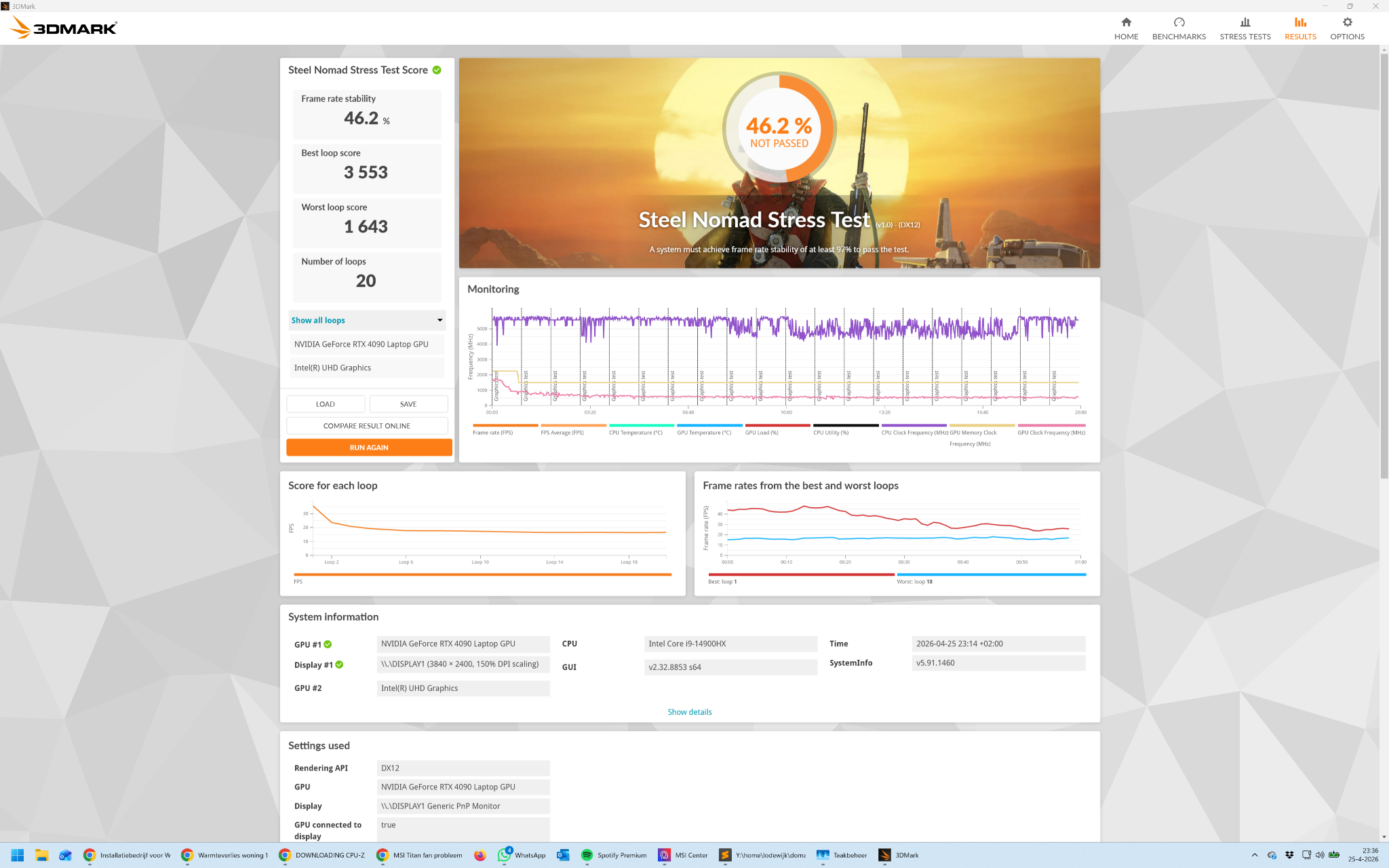

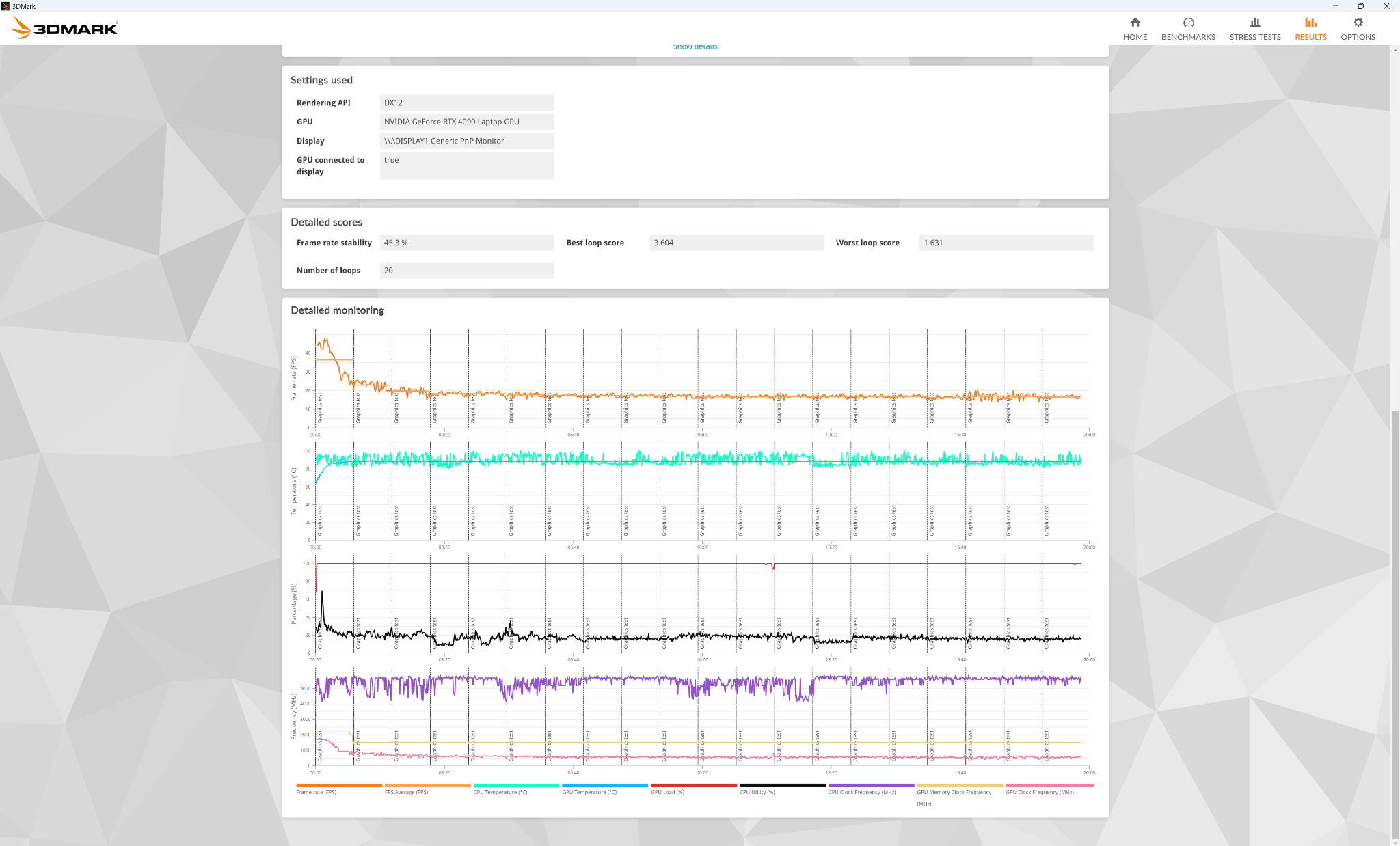

3DMark Steel Nomad: 46.2% — NOT PASSED
Under a 3DMark Steel Nomad stress test (20 loops, DX12) the frame rate stability came out at 46.2% — NOT PASSED, since a system must reach at least 97%. With a best loop of 3,553 and a worst loop of 1,643, performance dropped sharply under sustained load.

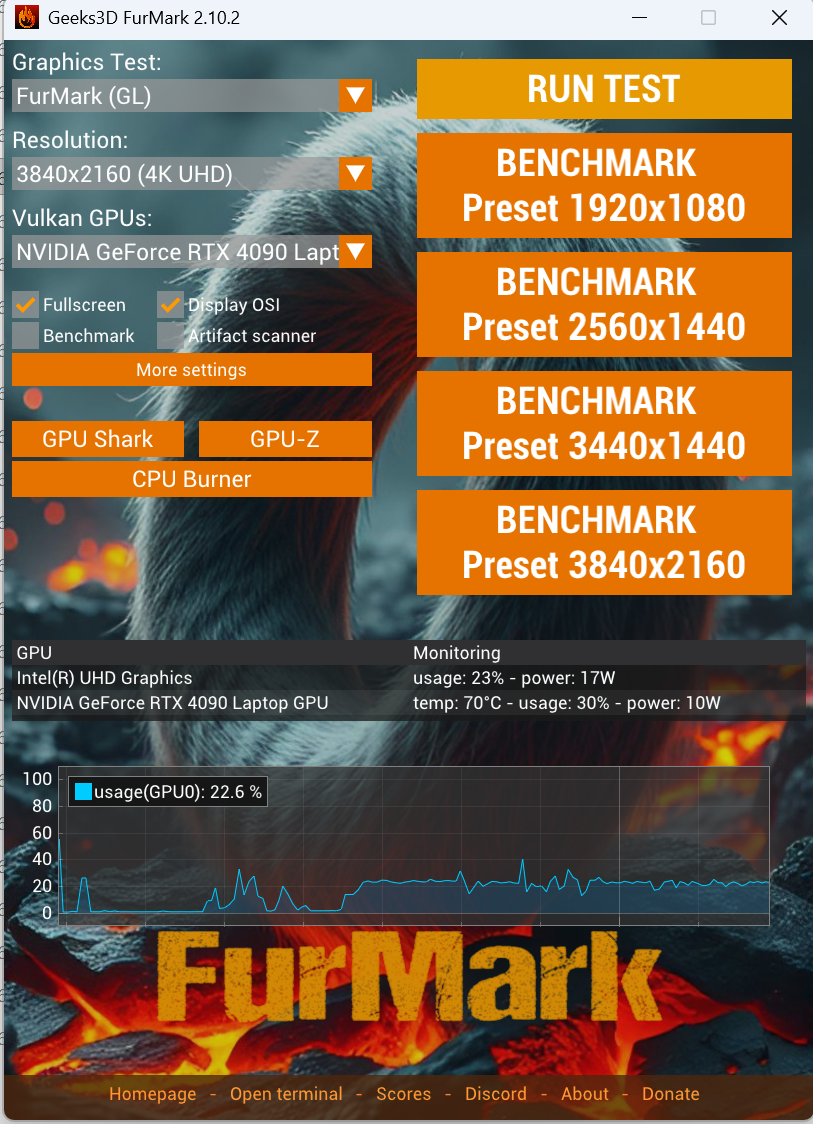

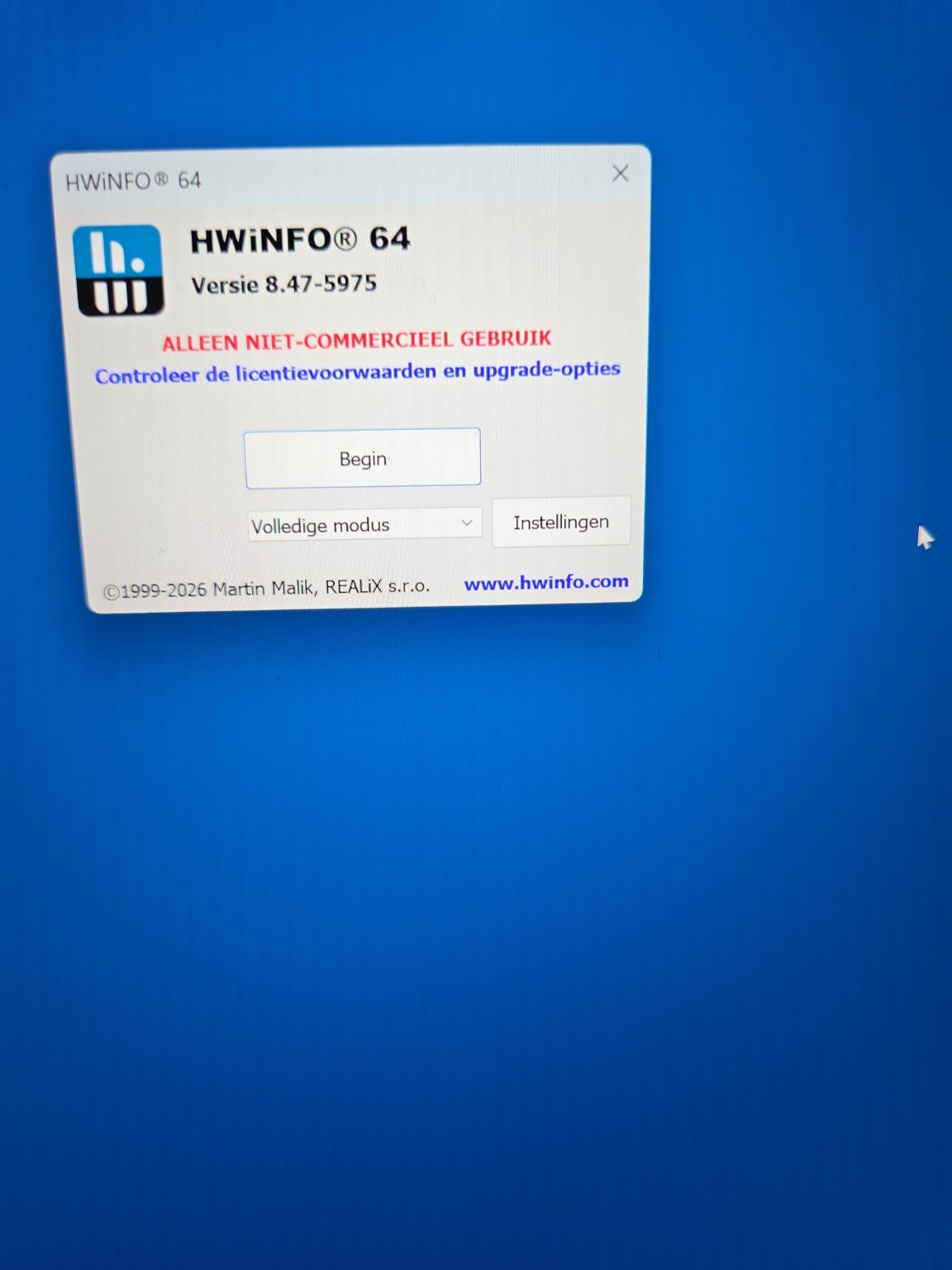

FurMark and HWiNFO64 — GPU and temperatures
As a second angle the GPU was loaded separately with FurMark on the RTX 4090 Laptop, with HWiNFO64 for monitoring. This exposed the behaviour under pure graphics stress, alongside the mixed 3DMark load.

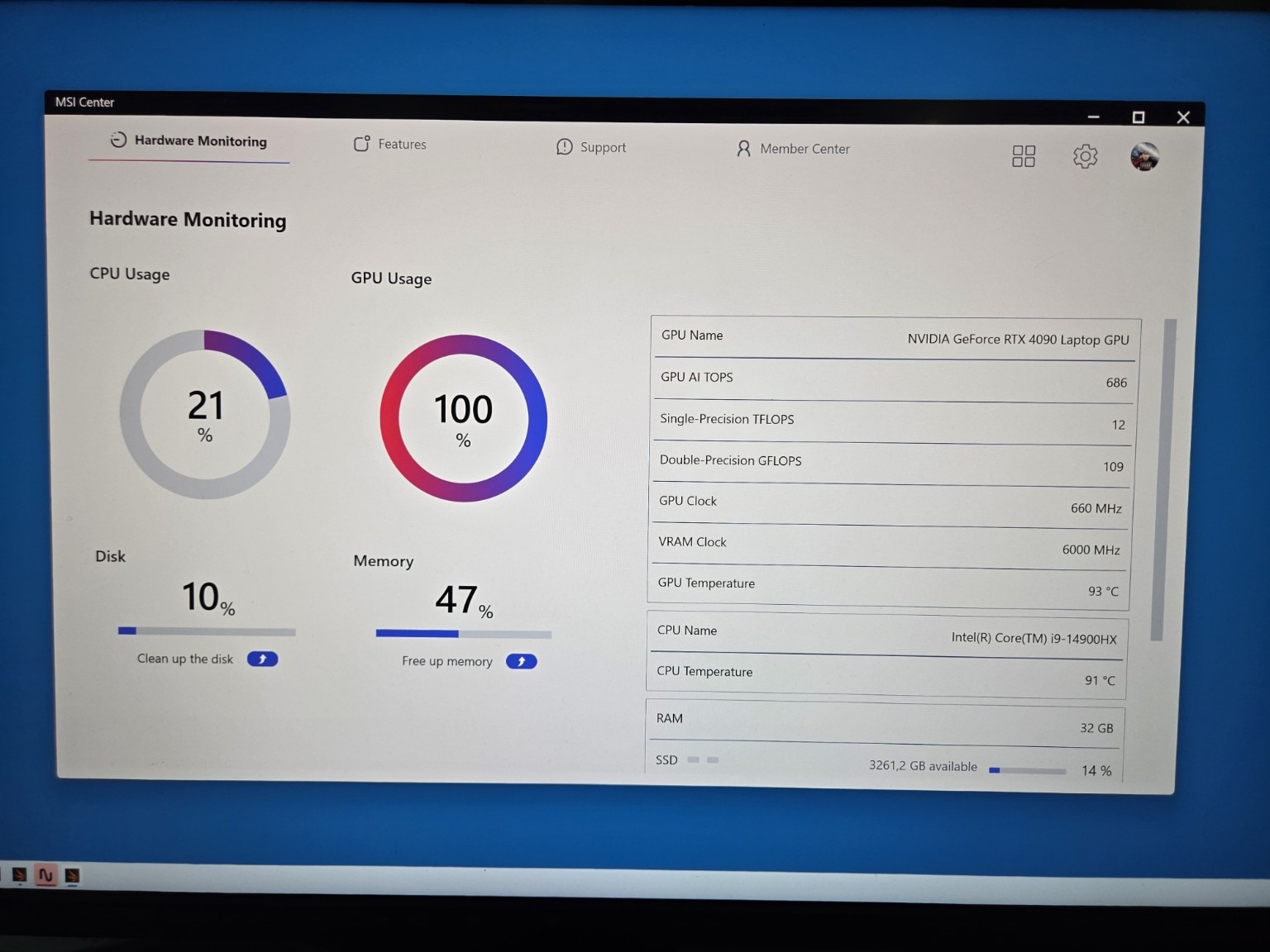

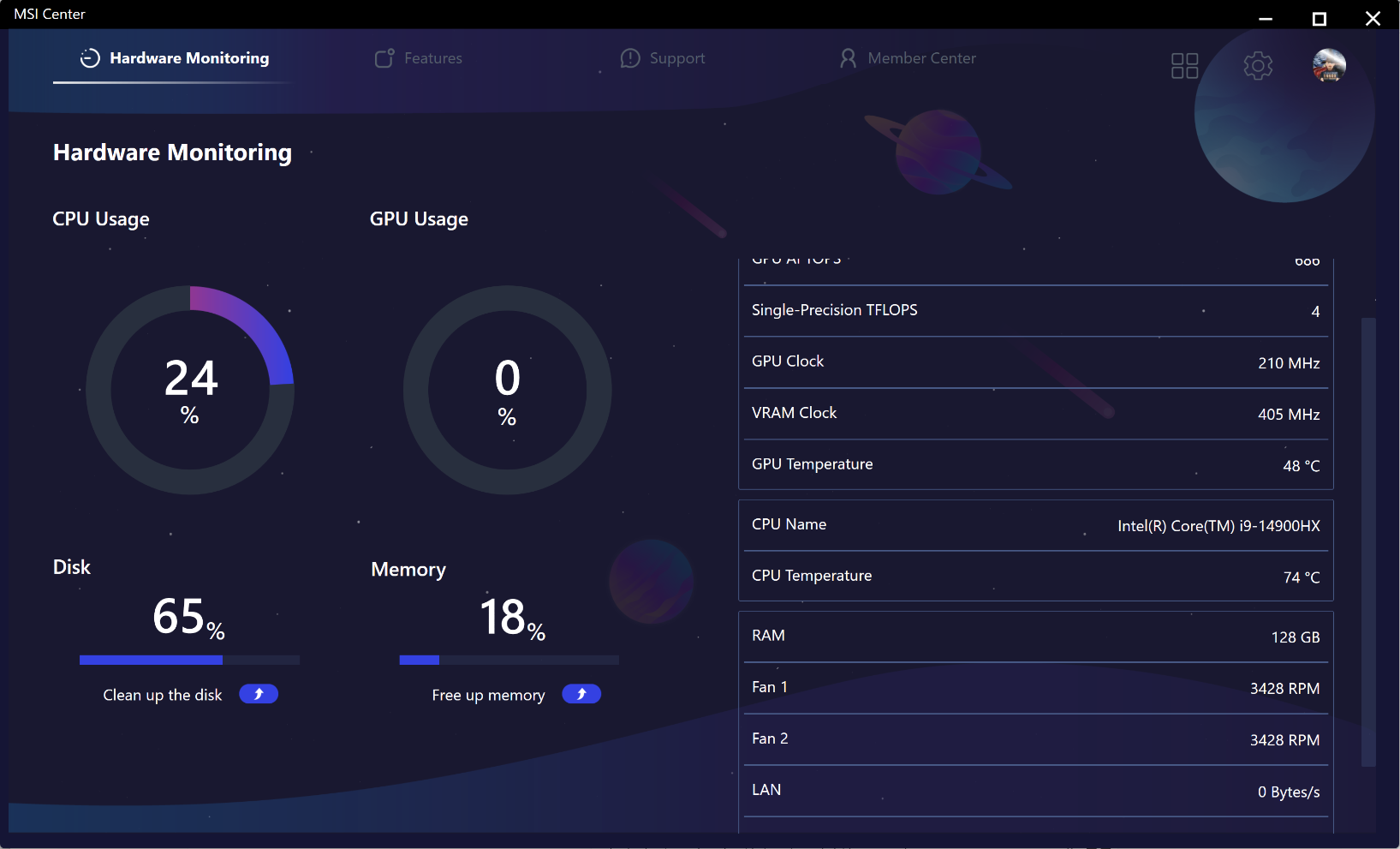

MSI Center: GPU 100%, ~93°C, fans and 128 GB RAM
Under heavy load MSI Center showed a GPU load approaching 100% with temperatures around 93°C, alongside the fan, RAM (128 GB) and temperature context. This confirmed thermals were a real factor and put cooling on the agenda.

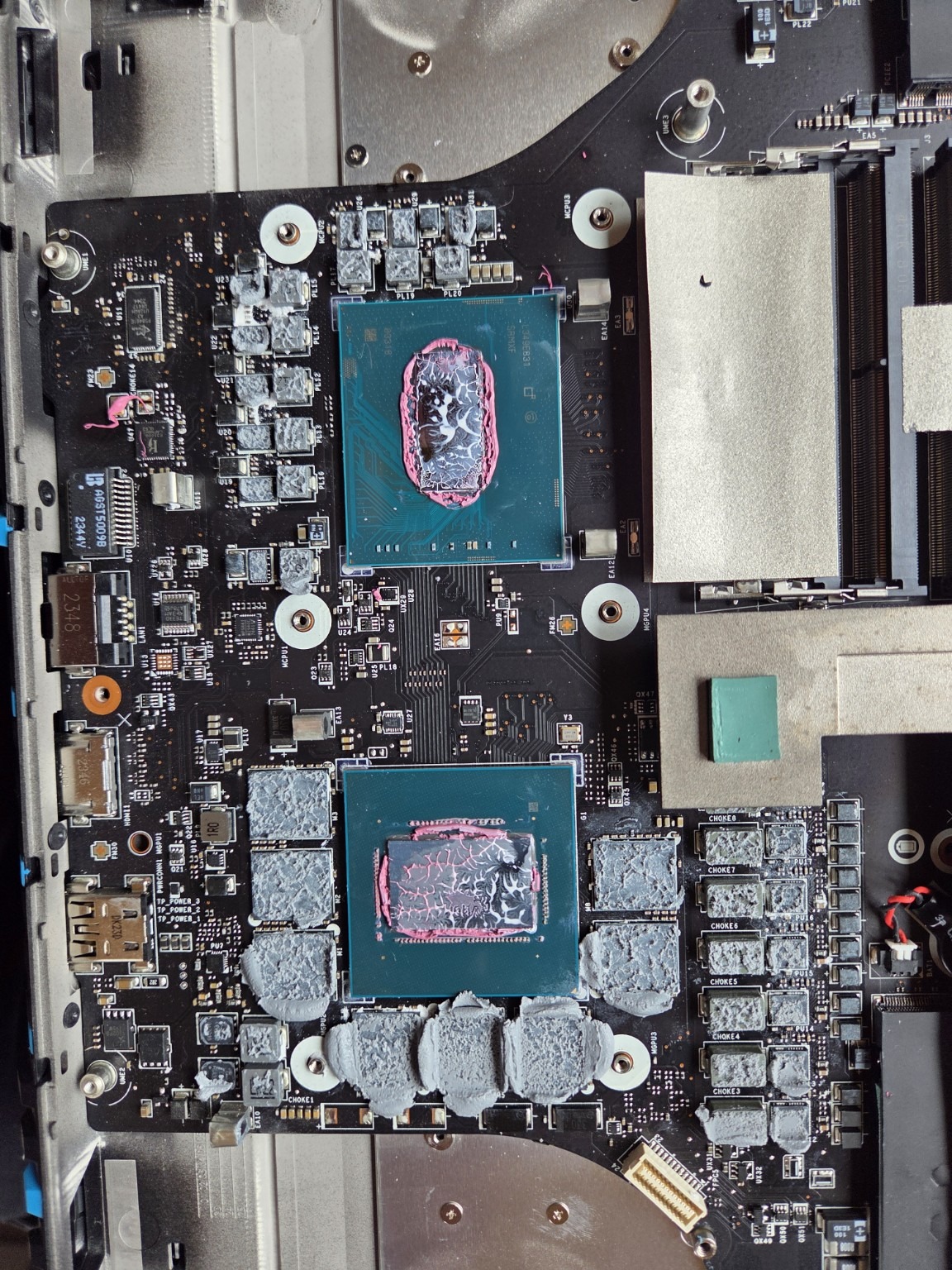

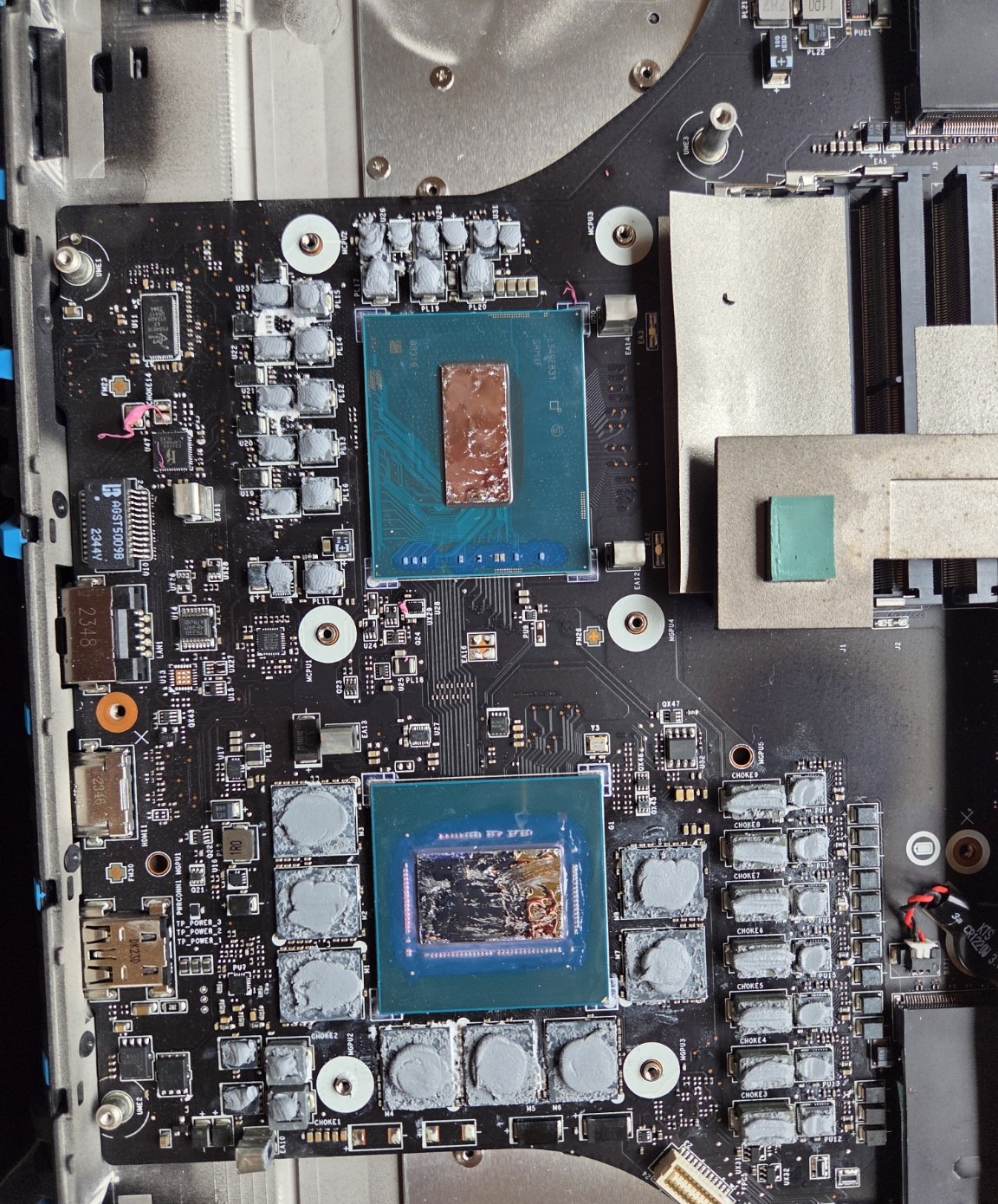

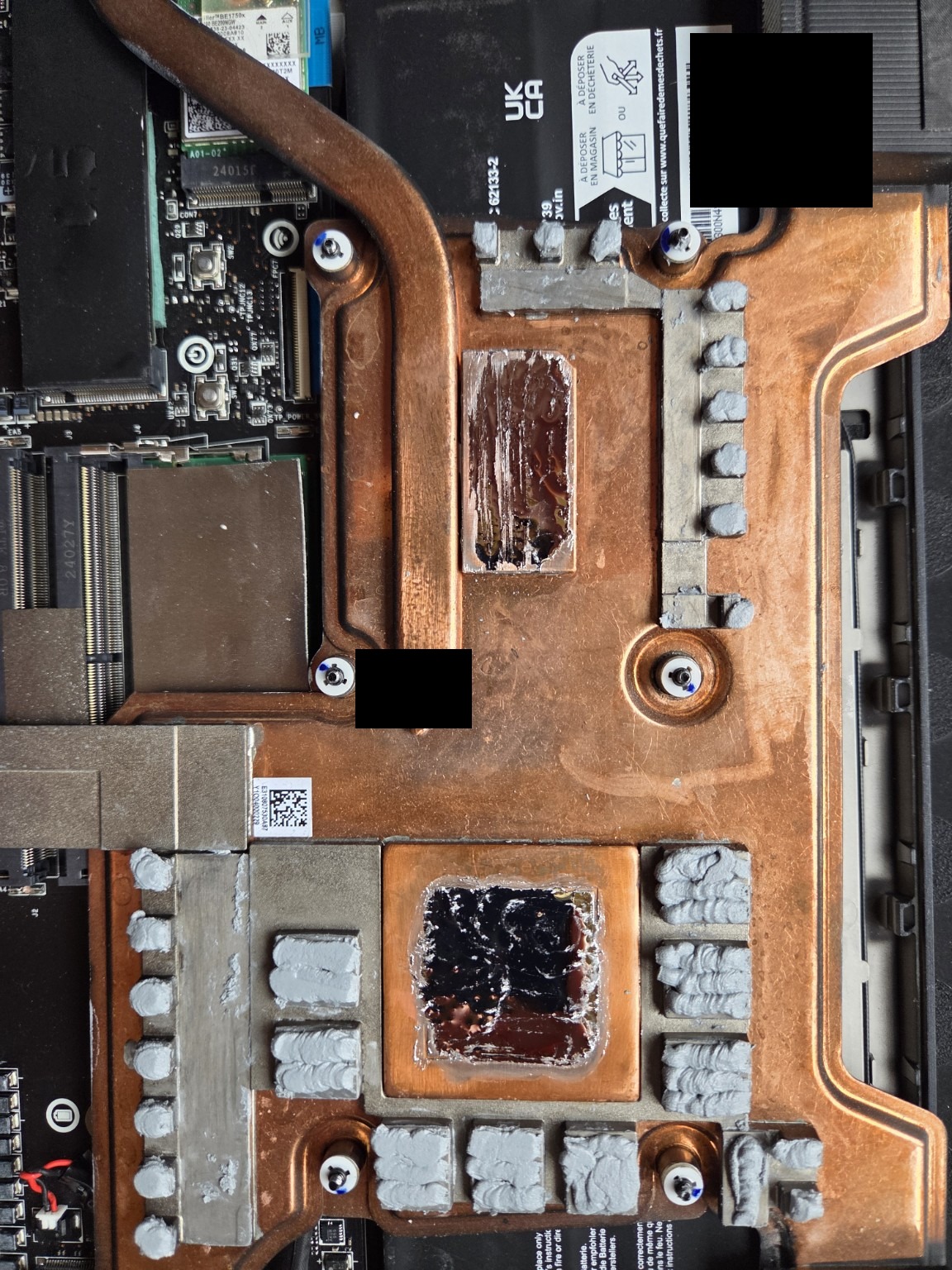

Thermal paste replaced — motherboard opened
The motherboard was opened; the old thermal paste turned out to be dry and was replaced. After applying fresh paste the machine ran noticeably cooler and quieter. The improvement was relevant but temporary: freezes and bugchecks returned later, ruling out "pure overheating" as the full explanation.

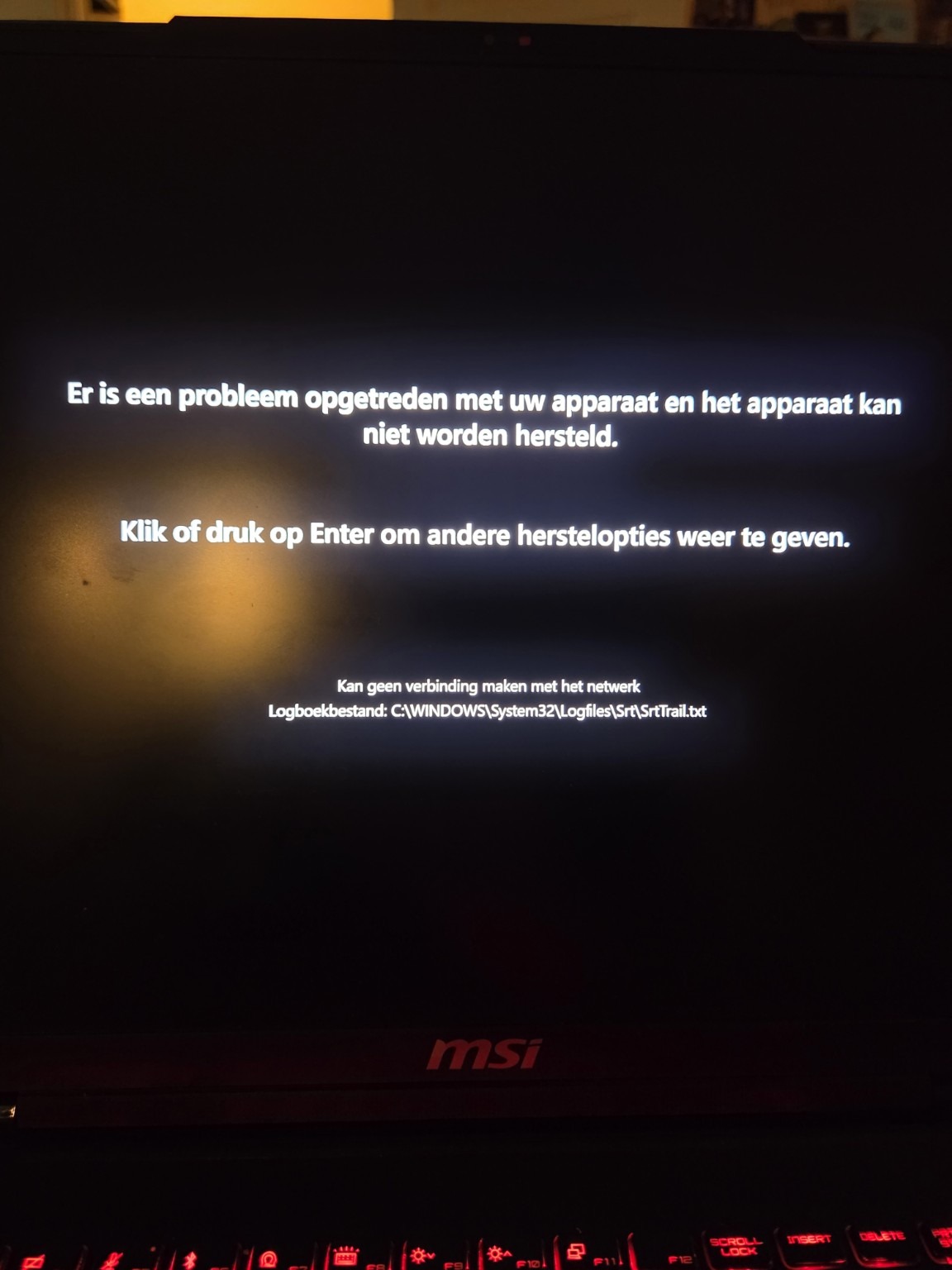

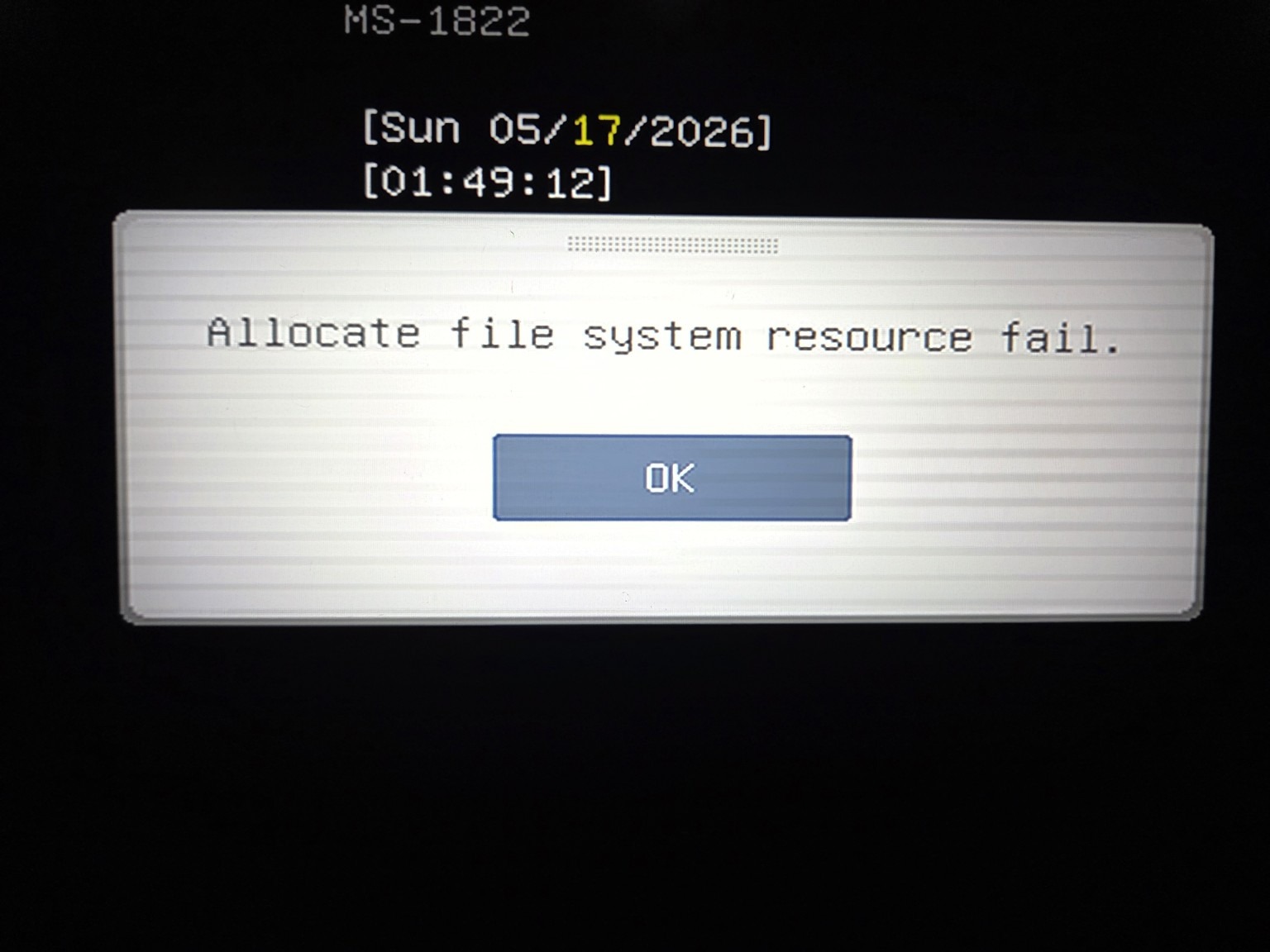

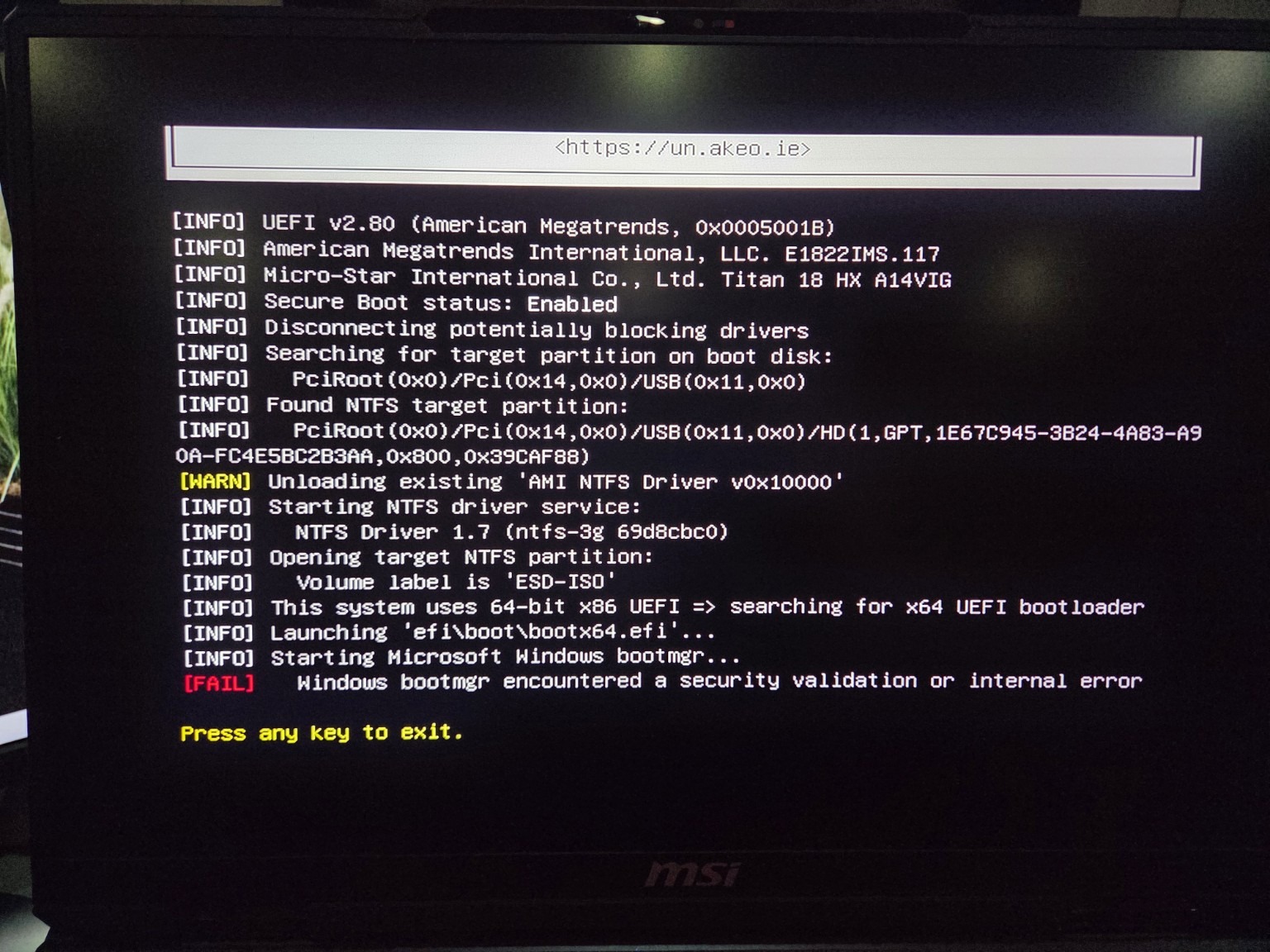

No bootable device, UEFI shell and recovery environment
Booting kept failing: messages like "no bootable device", a UEFI shell with startup.nsh, and a recovery environment that could not repair the device. Reason to tackle the install and firmware layer thoroughly.

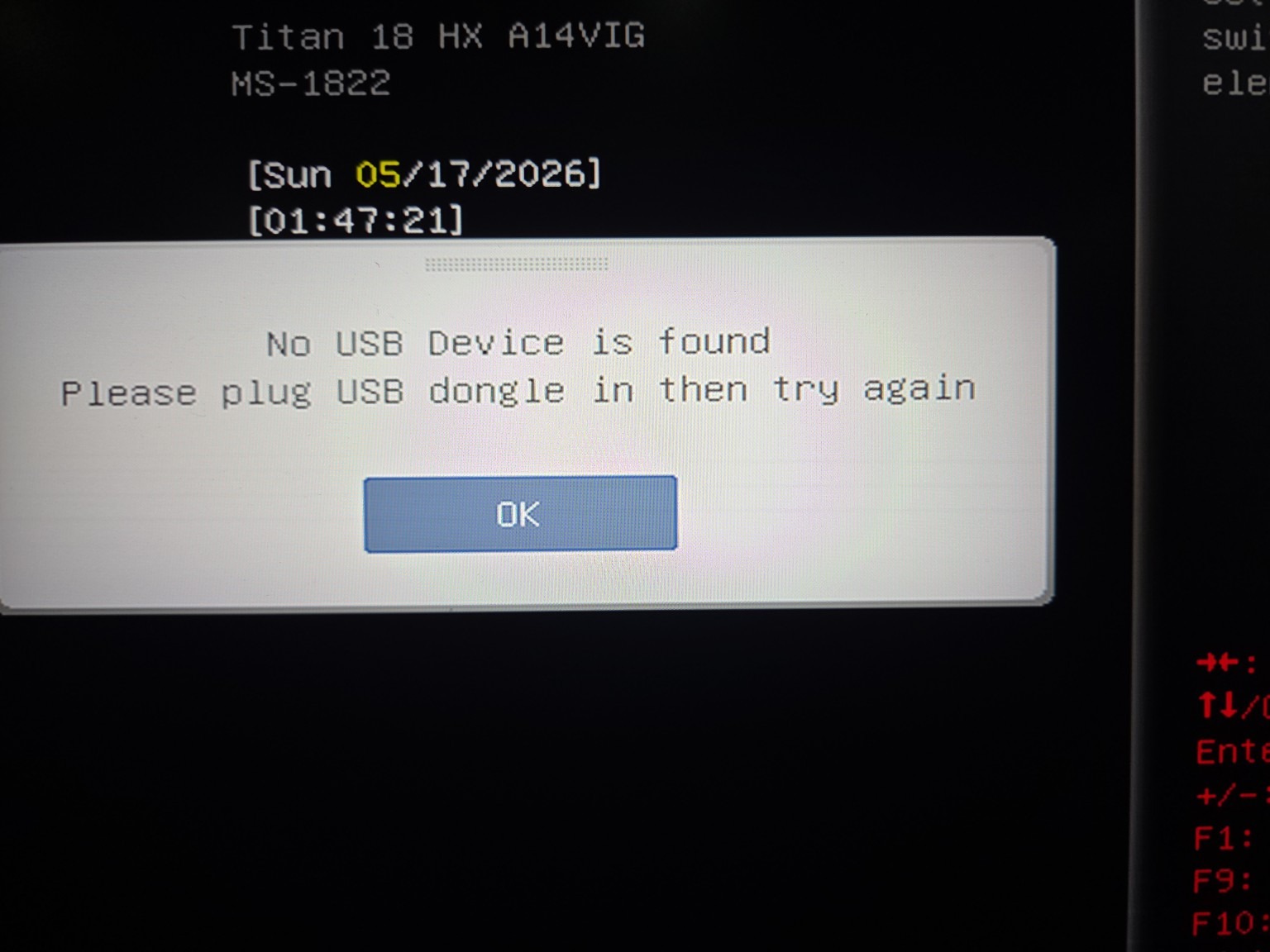

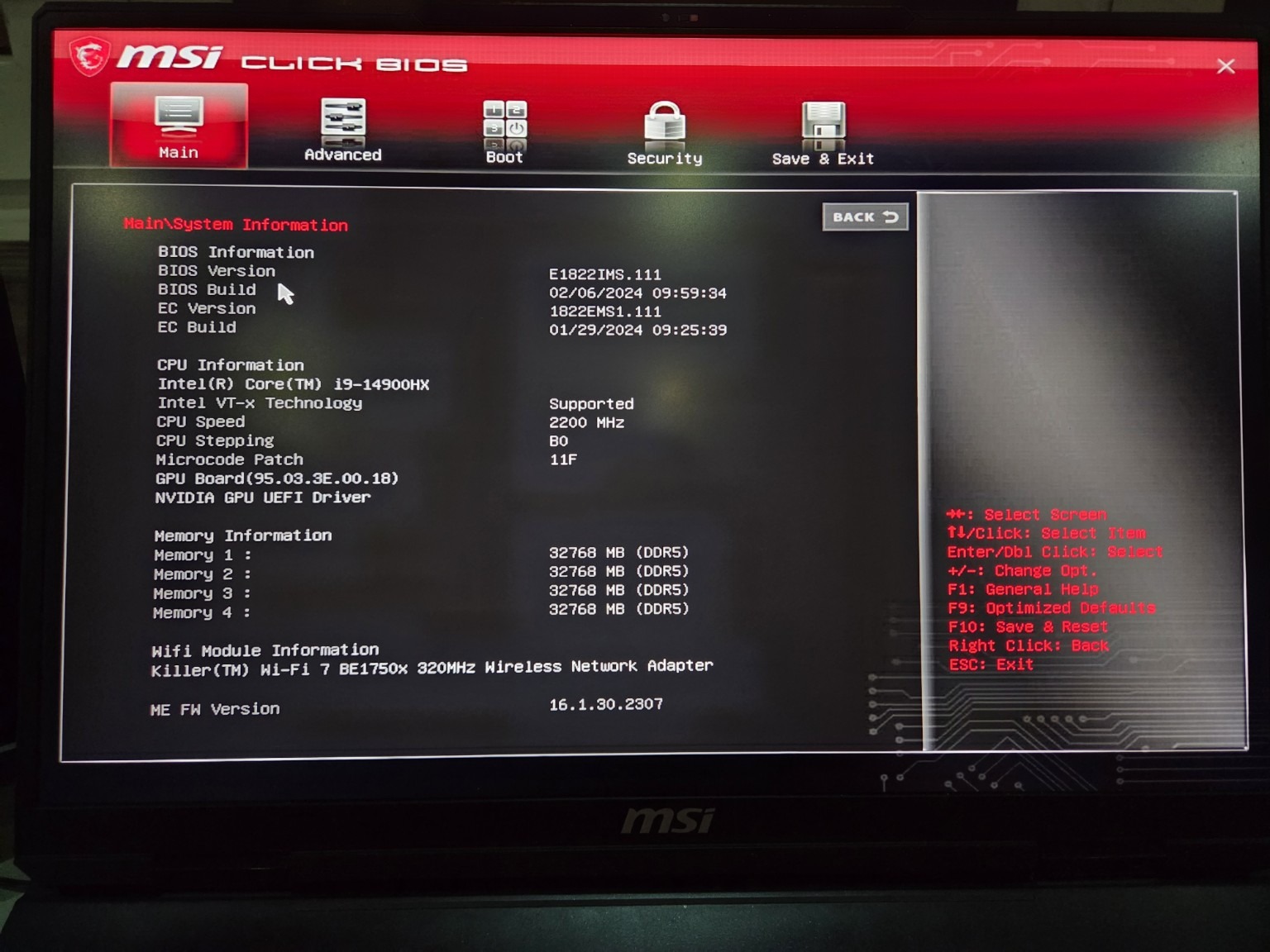

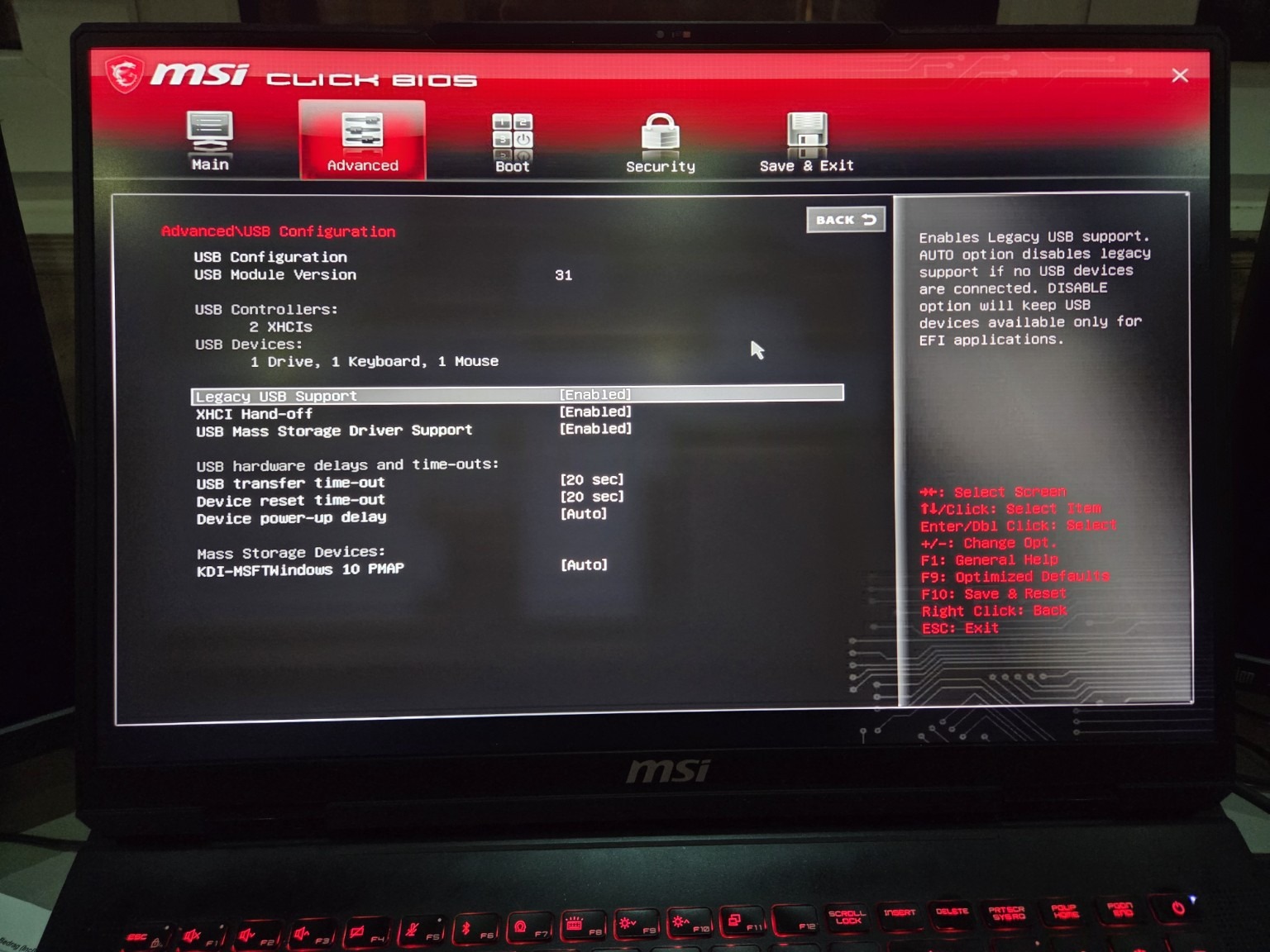

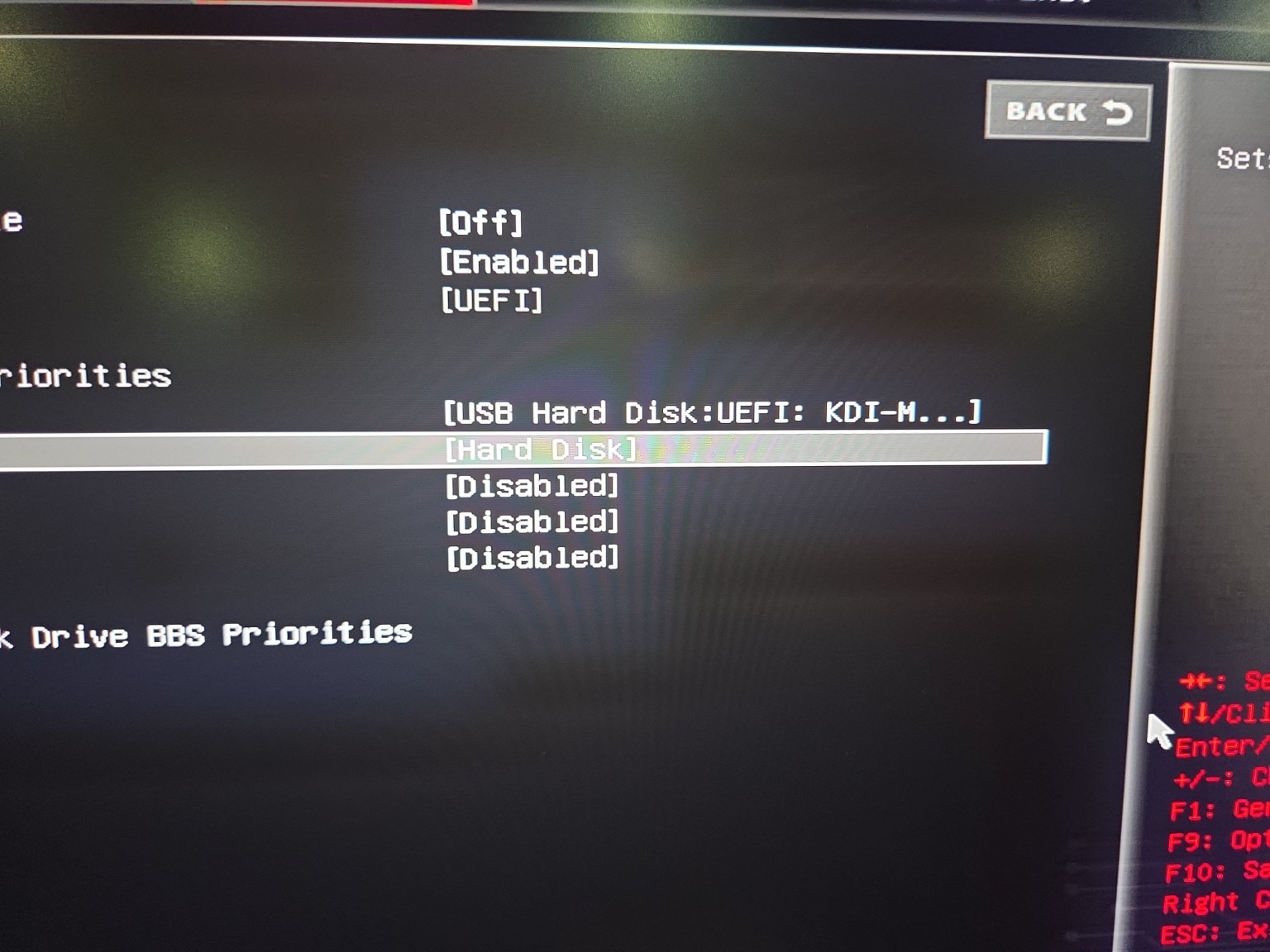

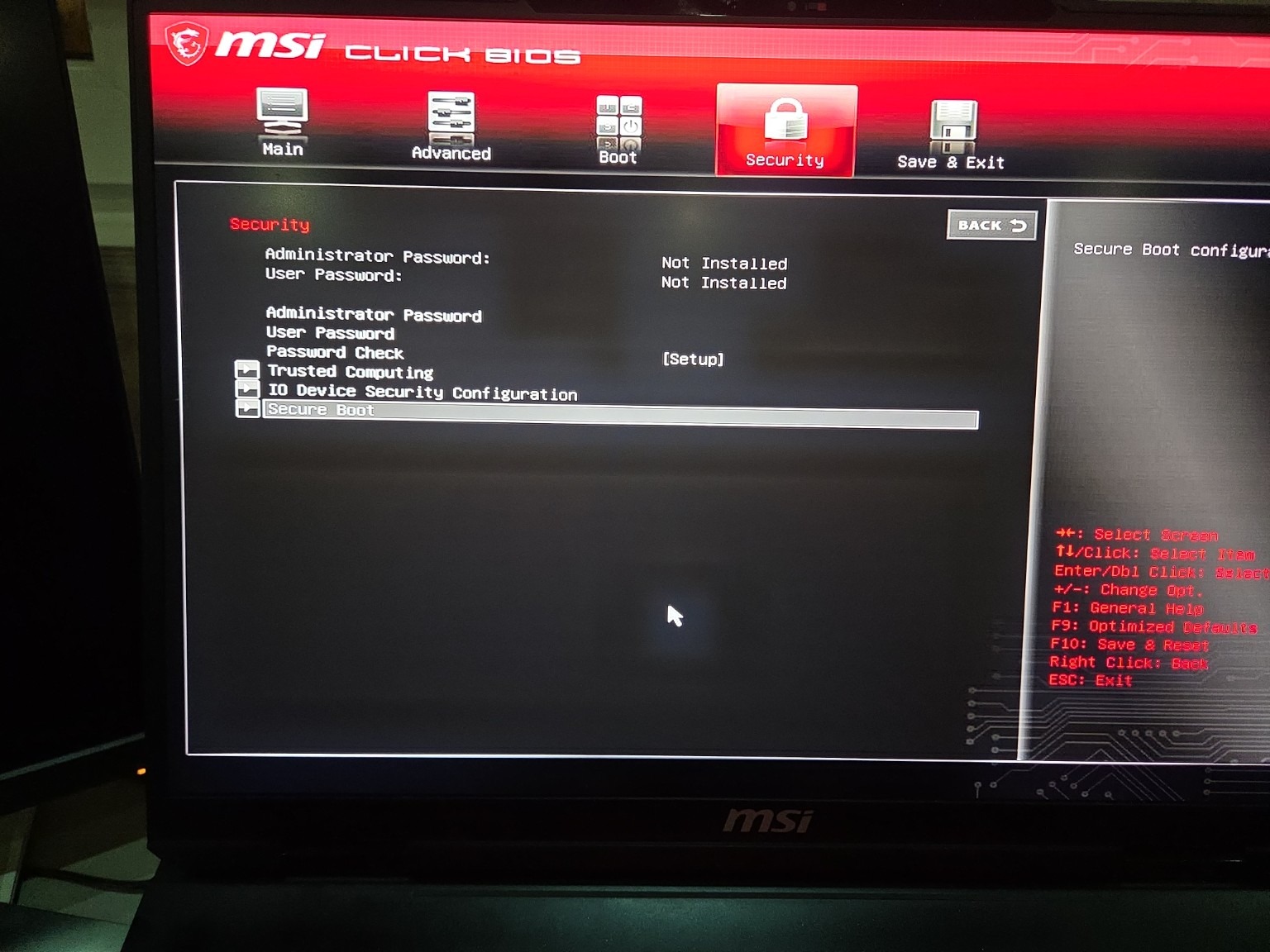

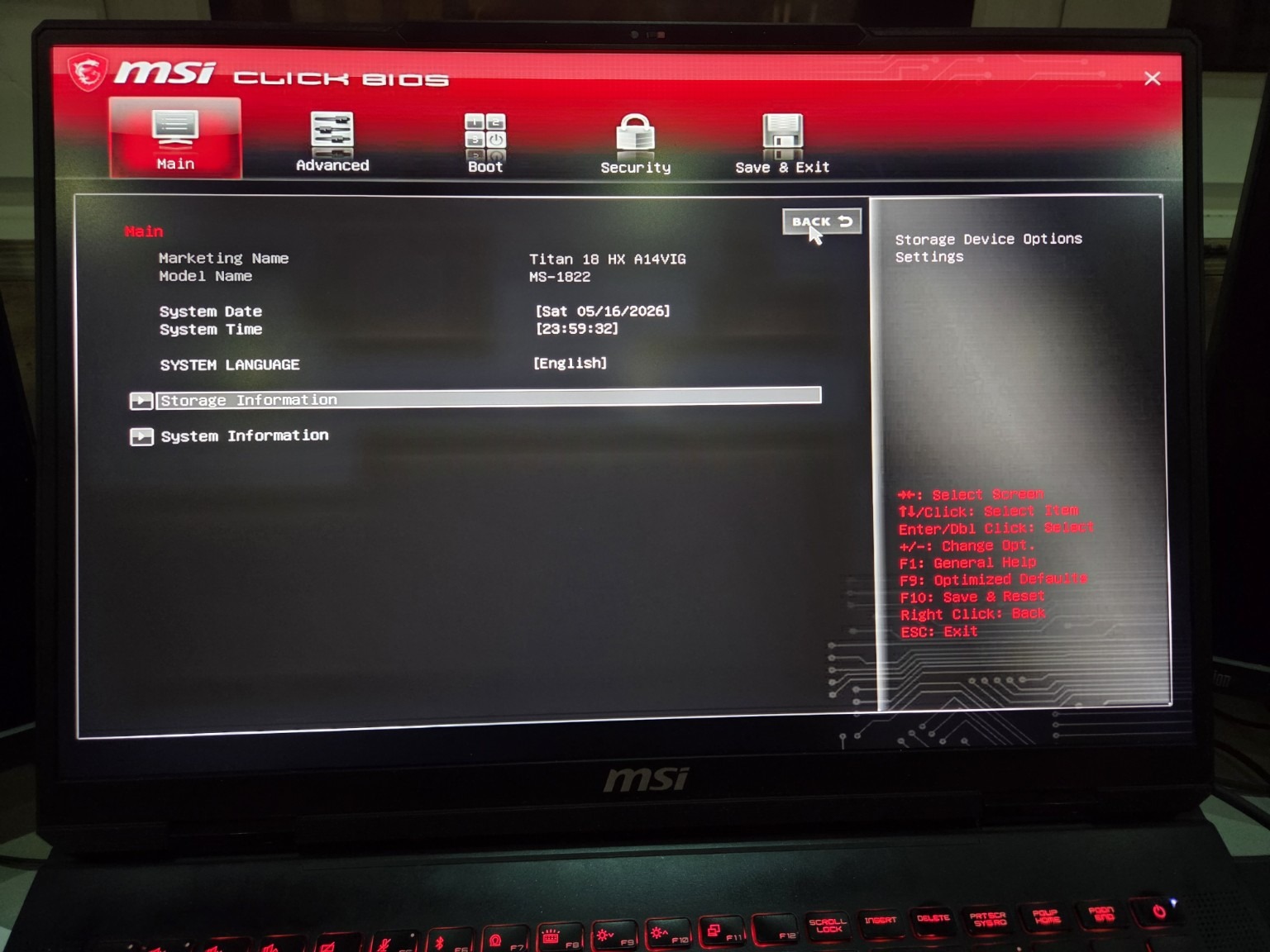

BIOS reviewed and updated via M-Flash
The BIOS was systematically reviewed — system information, boot priorities, USB configuration and UEFI/IRST settings — and updated via M-Flash. Along the way firmware messages appeared (including "no USB device" and a file-system resource error). The firmware layer was deliberately included because it weighs heavily in this kind of platform instability.

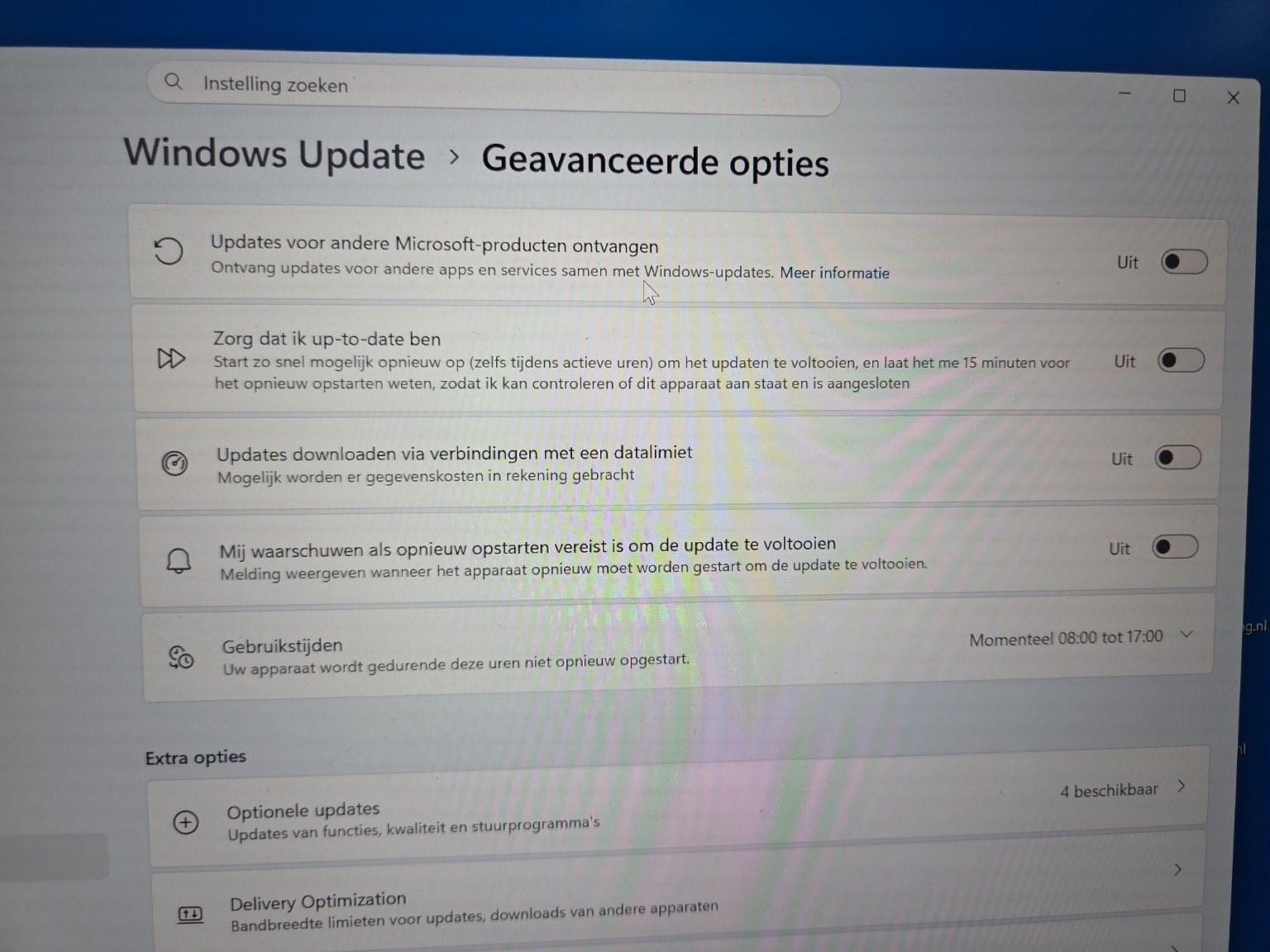

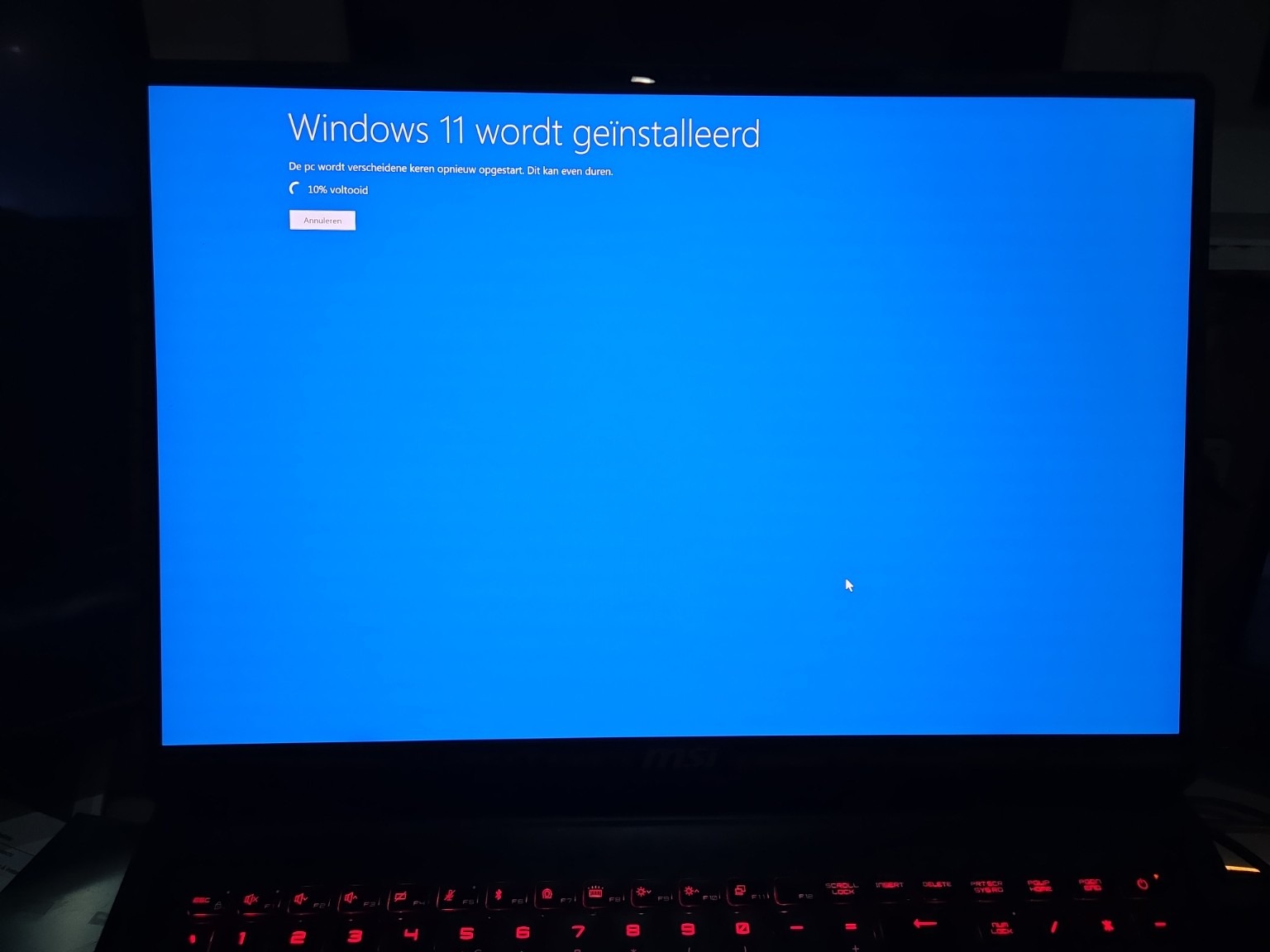

Fresh Windows 11 install and Windows Update
A clean Windows 11 base was set up from fresh Microsoft installation media, followed by the advanced Windows Update options. An existing install USB proved unreliable, so new media was created. This ruled out old installation clutter as a cause.

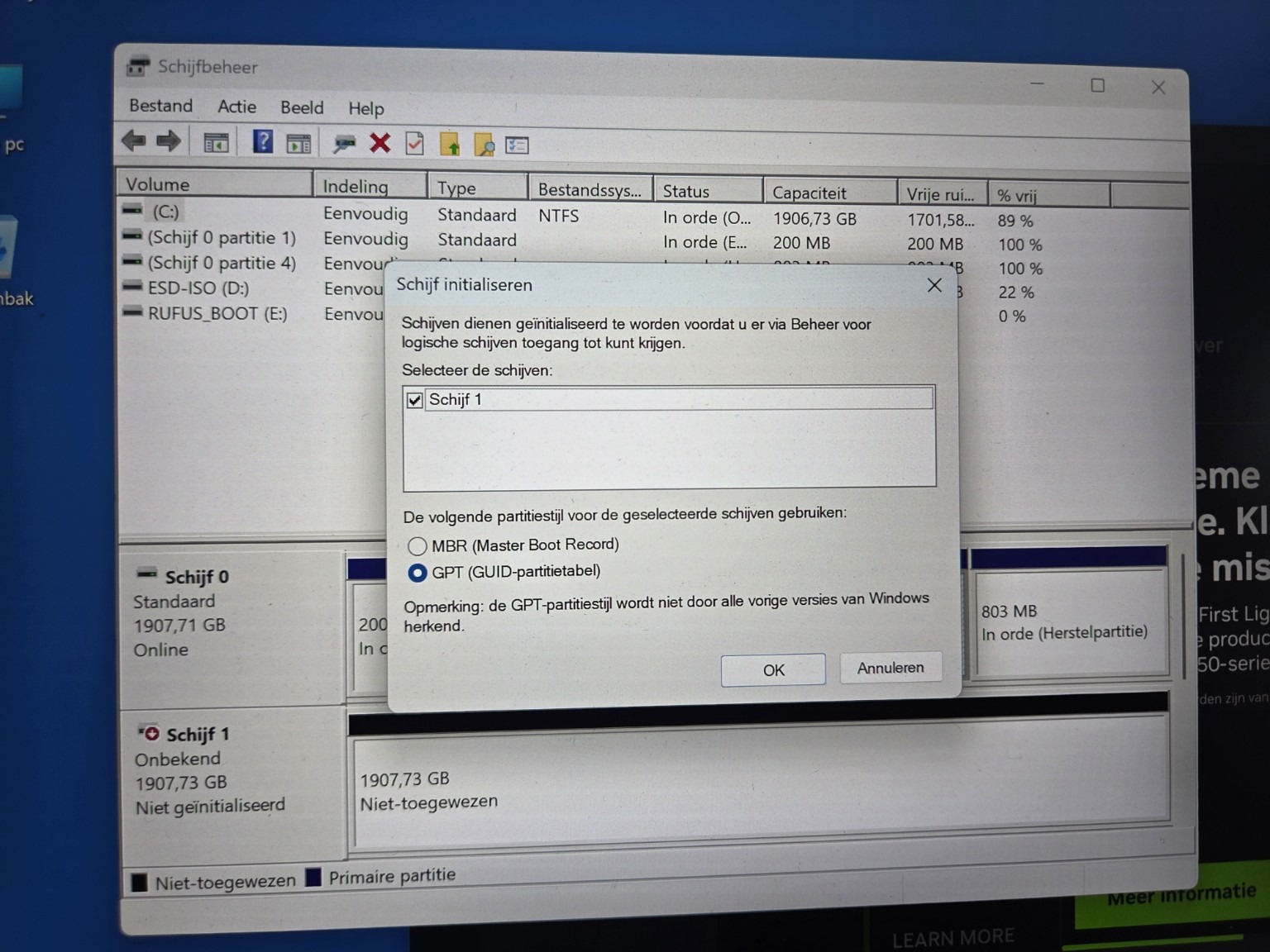

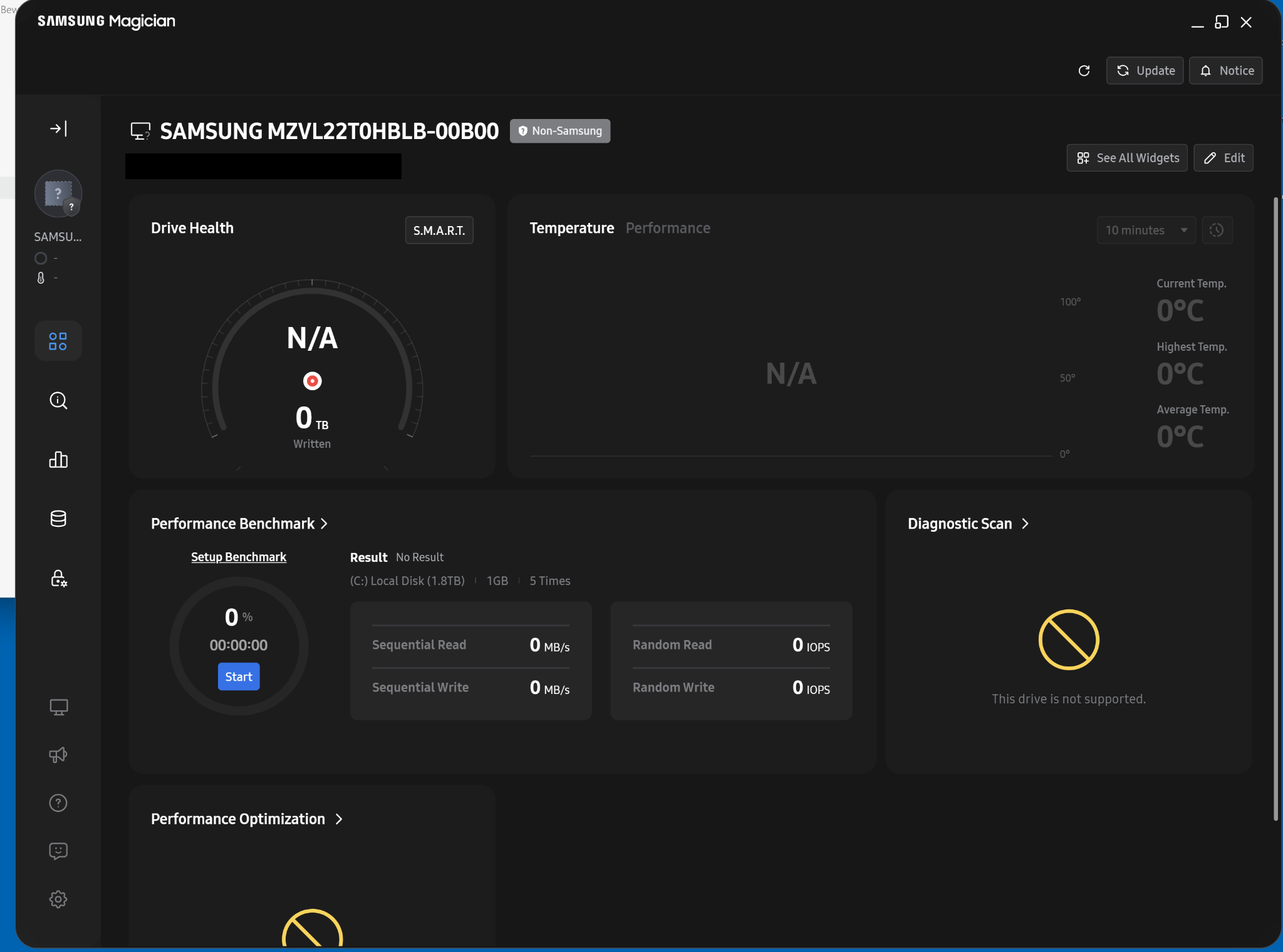

Initializing the second disk and SSD status
In Disk Management the second NVMe disk was initialized; Samsung Magician was used to check the health of the Samsung SSDs (serial number redacted). Both disks came back healthy.

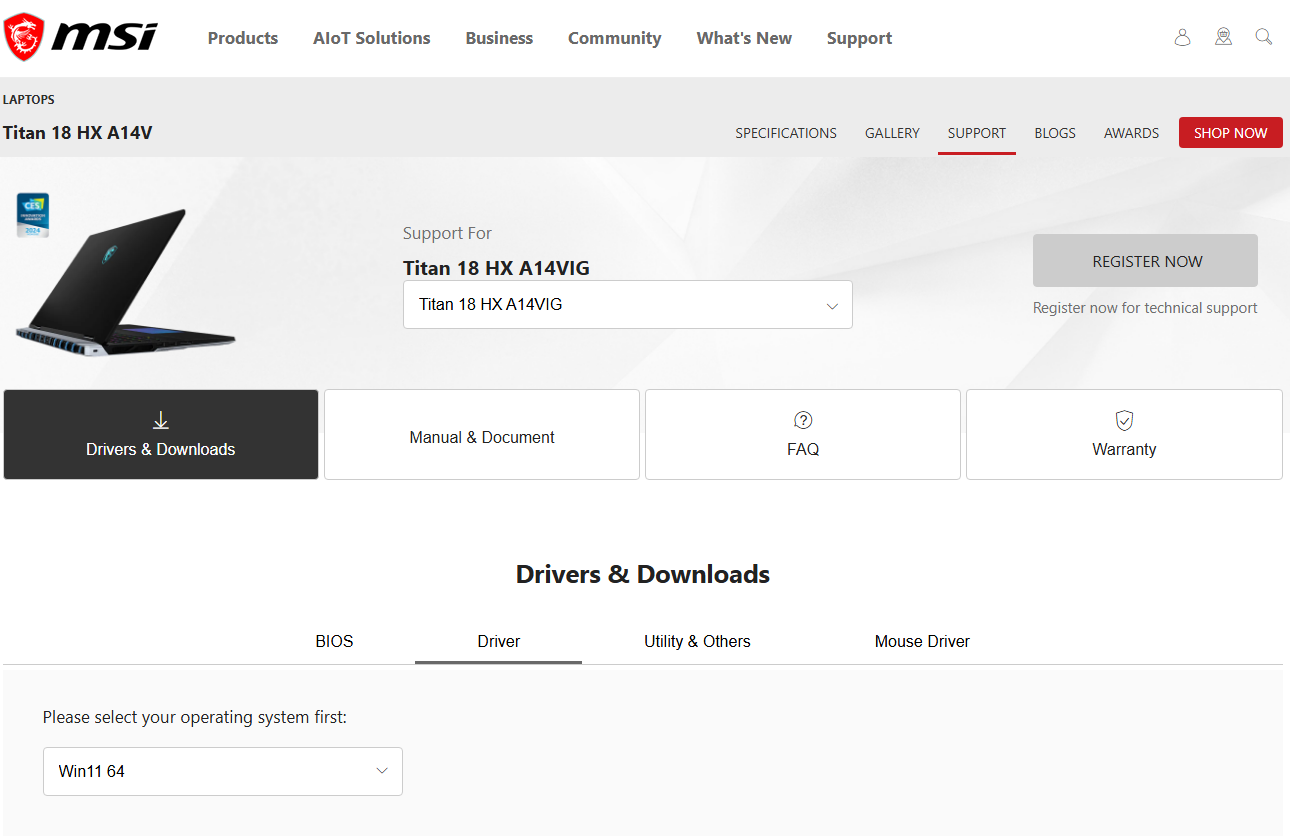

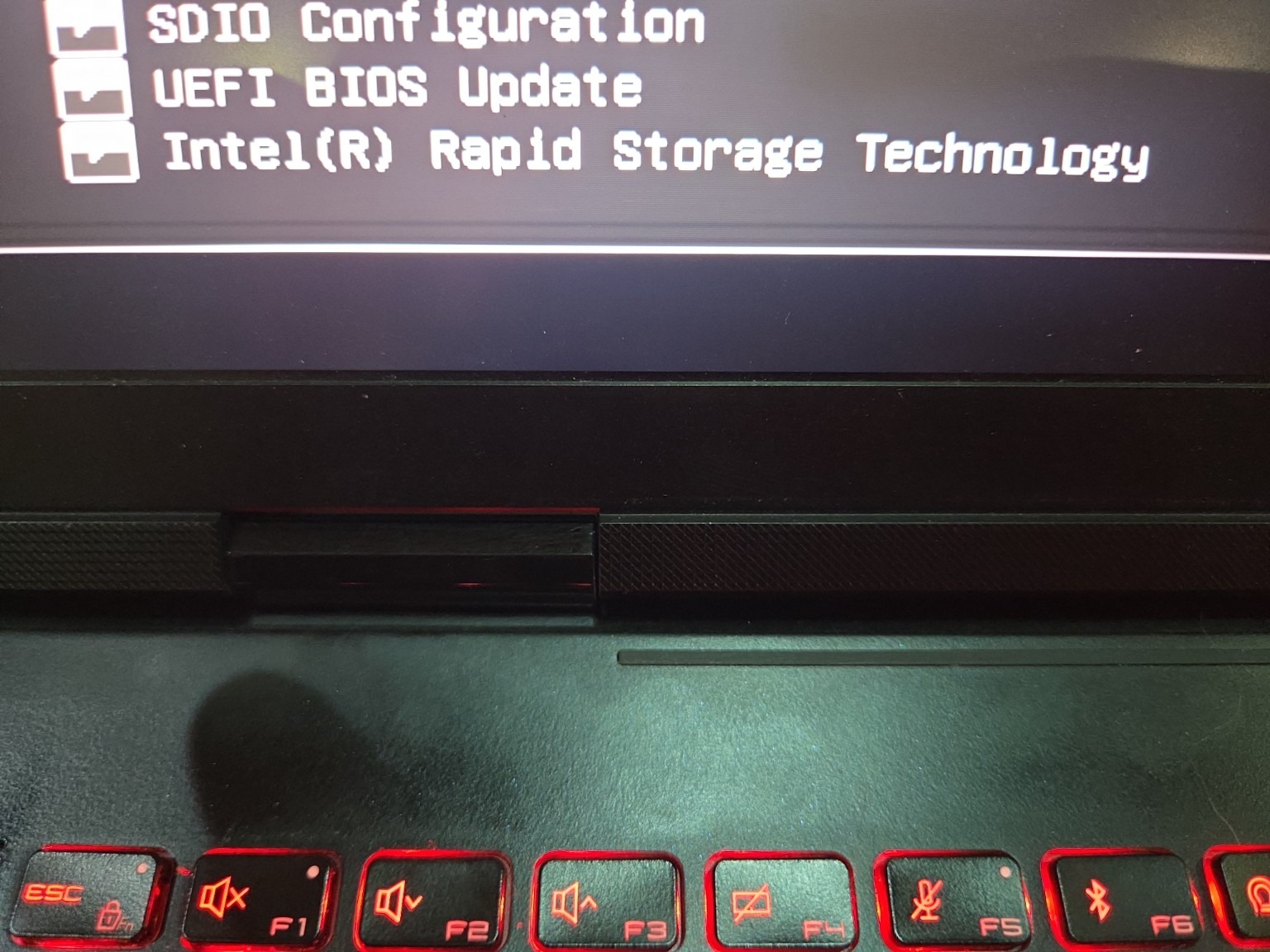

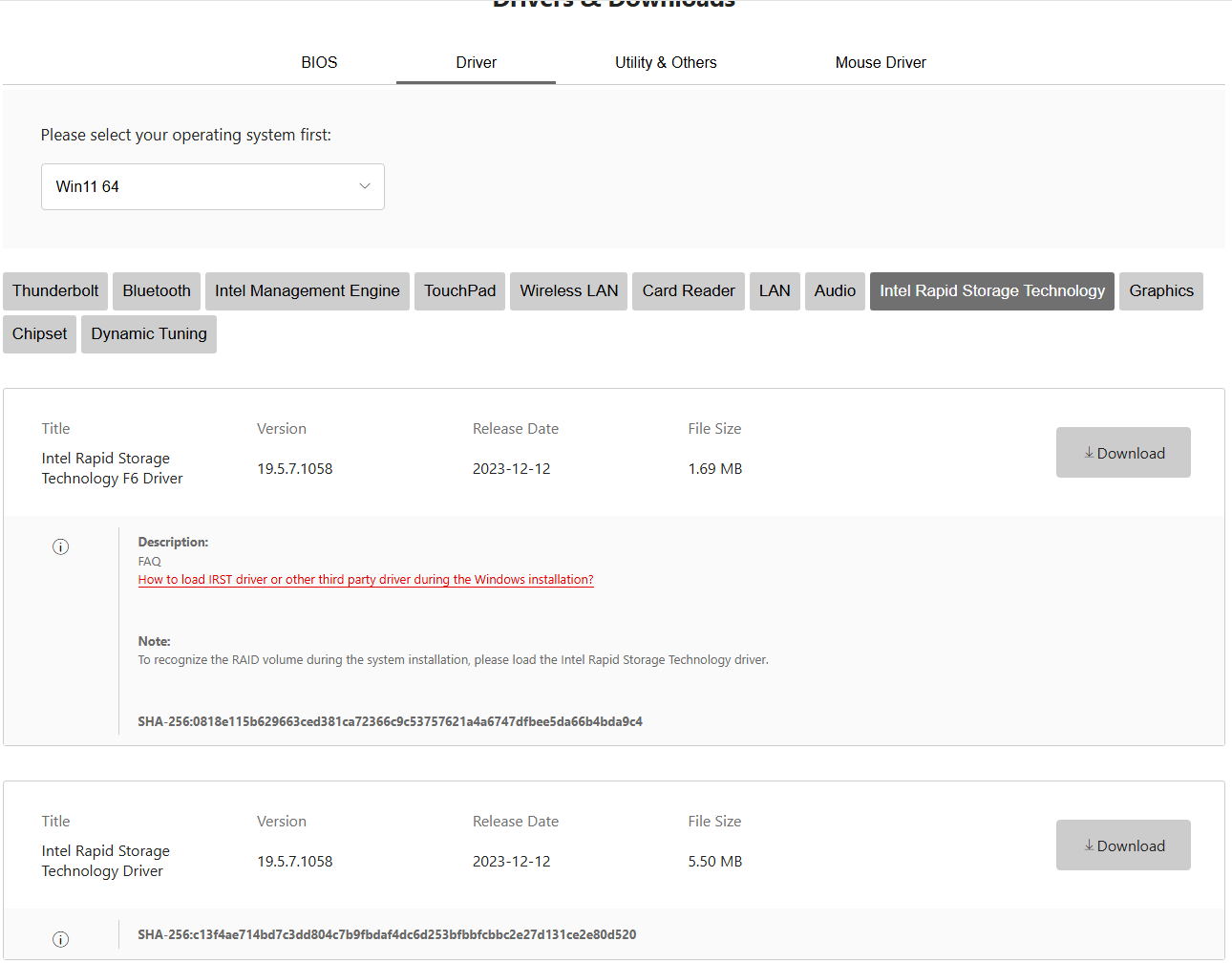

Drivers checked via MSI support and IRST/VMD
Drivers were built up in a controlled way from the official MSI support page, including the IRST/VMD storage-controller driver. A controlled build prevents later faults being blamed on a random installation mix.
Intel ME / chipset driver updated
One of the most impactful actions: updating the Intel Management Engine and chipset drivers (visible in Device Manager, including the Intel Innovation Platform Framework) produced a clearly noticeable improvement in stability in practice. It did not fully solve the underlying problem, but for day-to-day use it was a big step forward — and worth trying for users with a comparable system.
Even on a clean install, the laptop fails again
Despite the fresh install, the BIOS update and the careful driver build, the machine again dropped out suddenly and restarted. This made clear that an old or corrupt Windows installation could not be the only explanation.
Memory logs capture context around failure moments
Two series of log lines with committed and available virtual memory were recorded, seconds apart (around 20 GB committed, ~14 GB free). This gave the file time-bound data instead of just descriptions.
Standby-like drop-out — no clean shutdown
The system did not seem heavily loaded, appeared to head toward standby and then suddenly dropped out, only to boot again where it left off. Windows had not shut down cleanly (source: errors.XML). This fits a system that does not always show a classic BSOD but does fail at a low level.

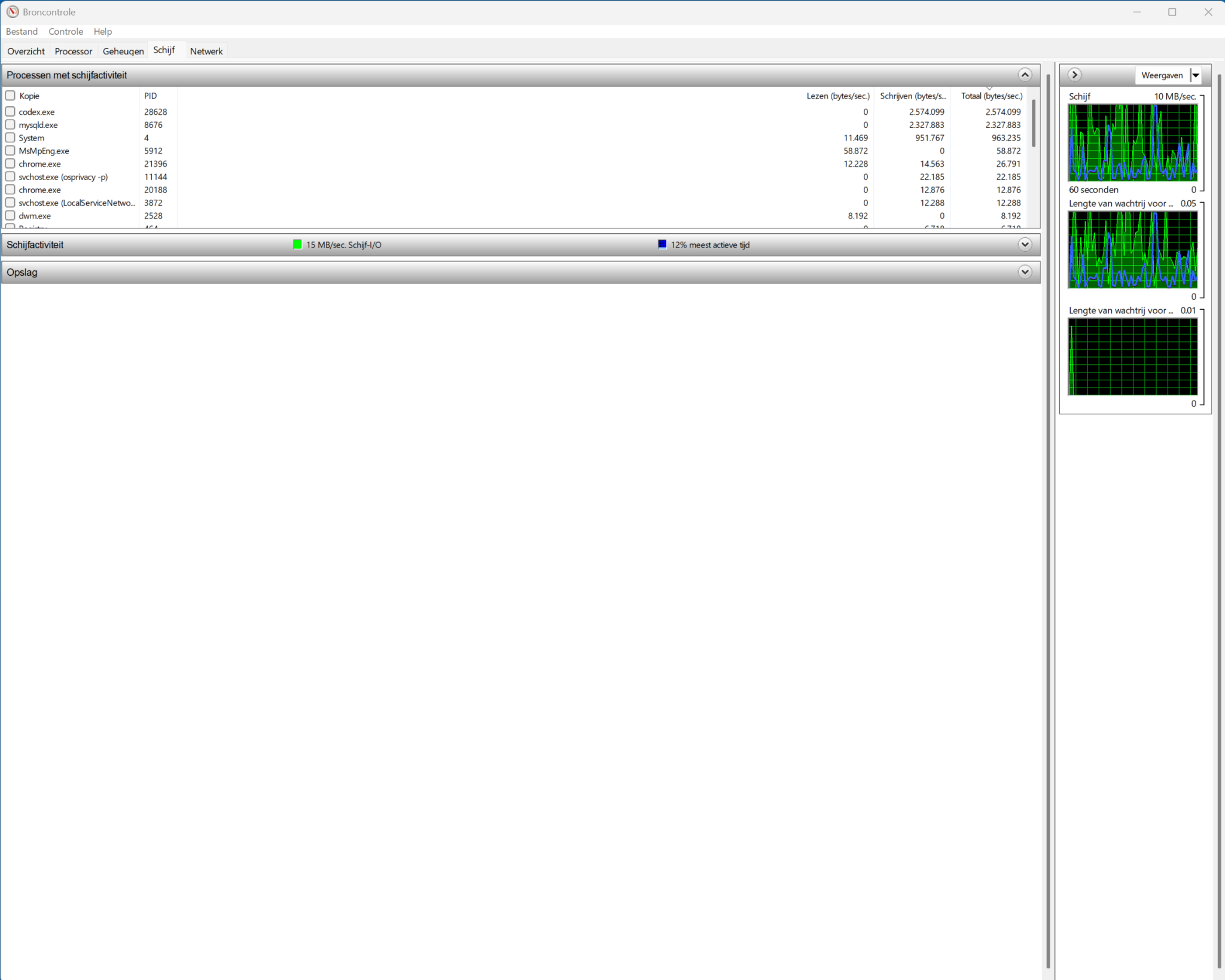

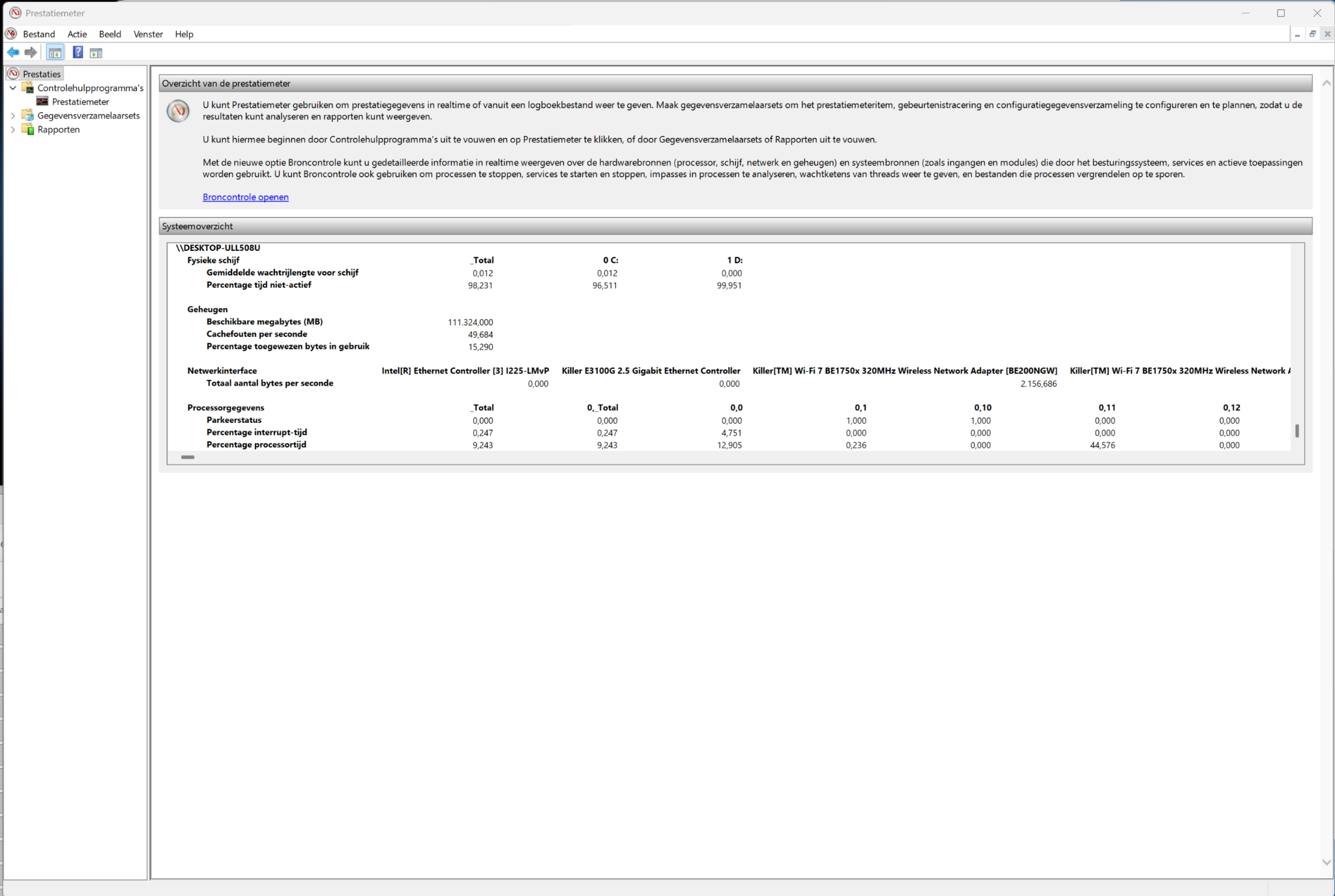

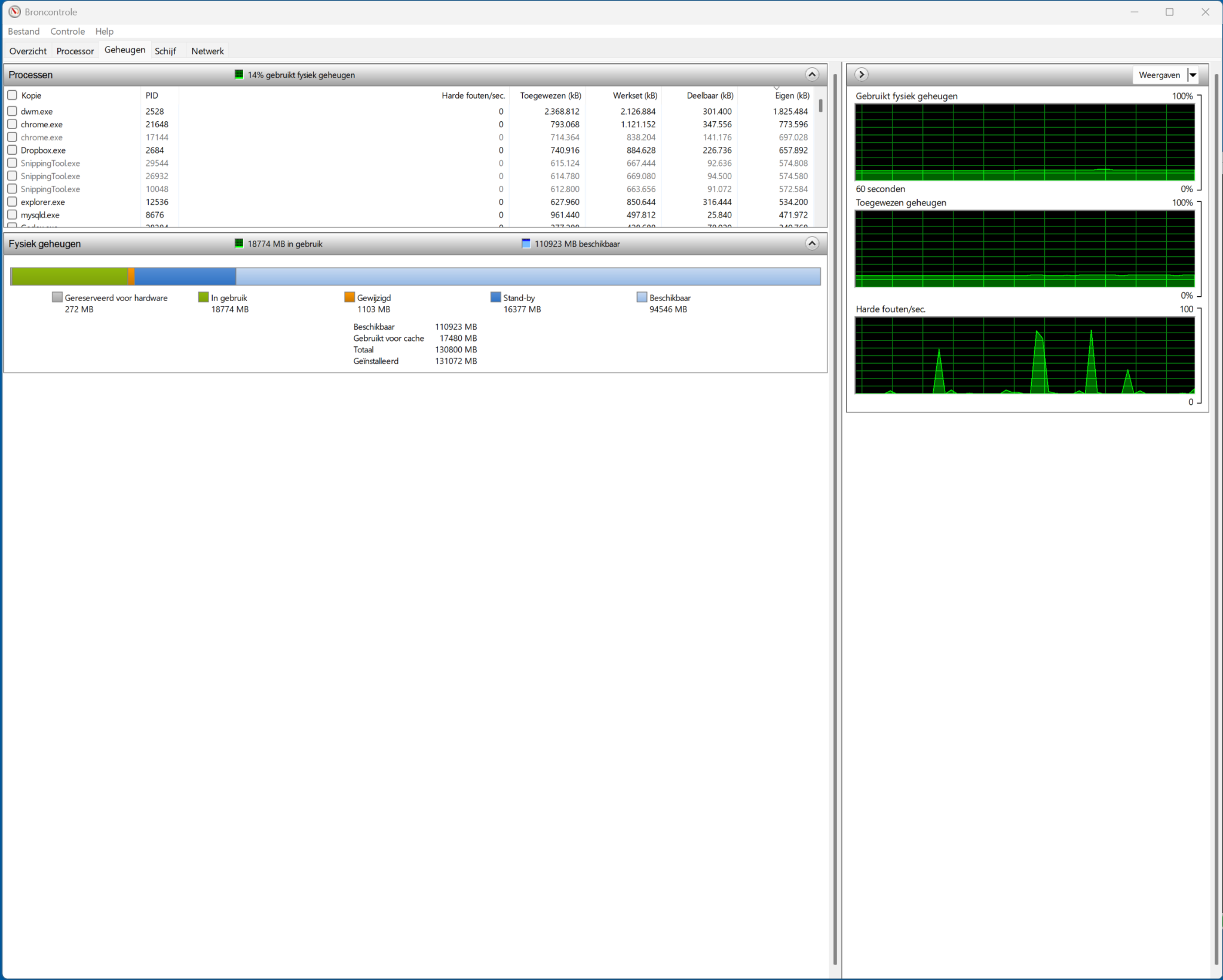

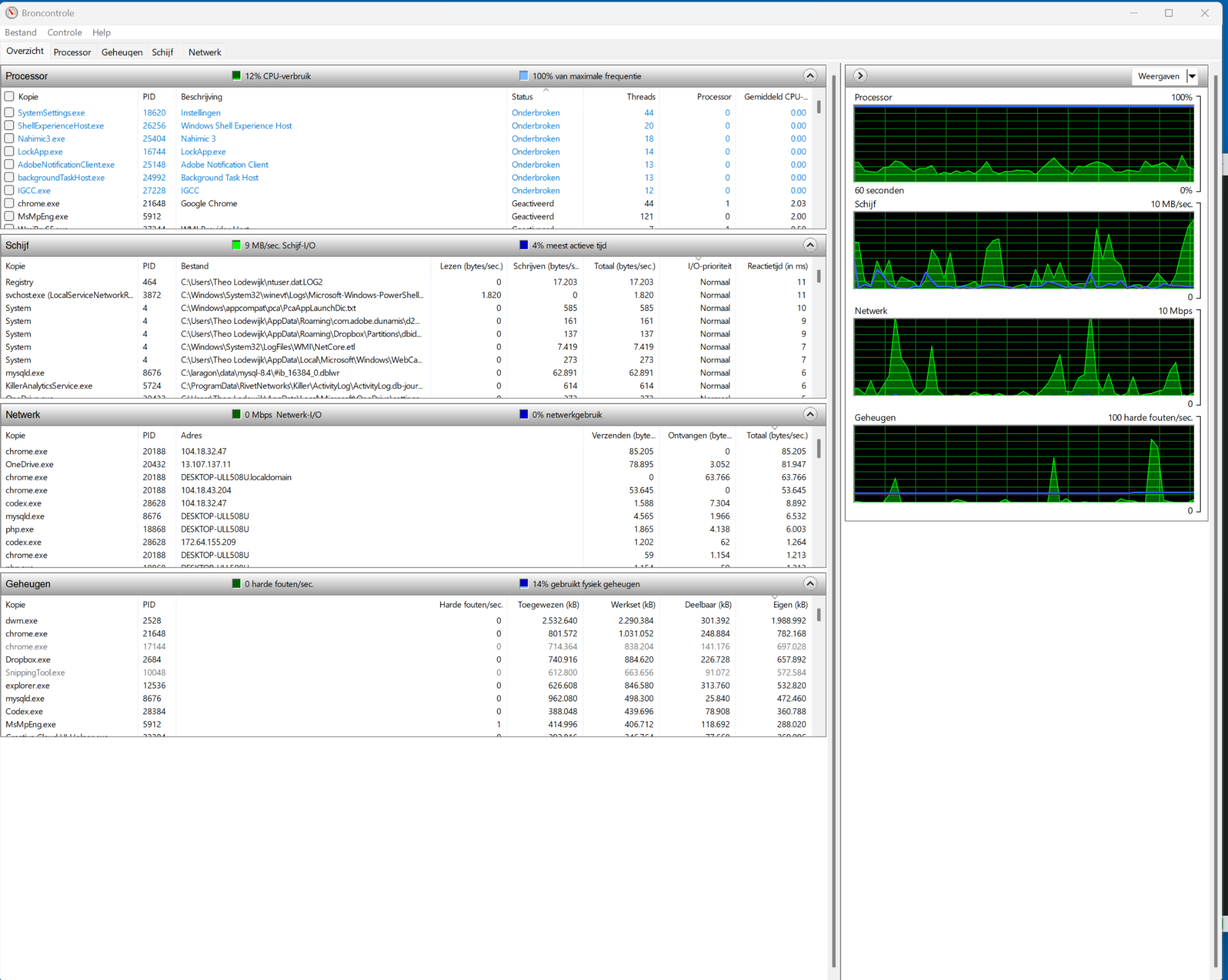

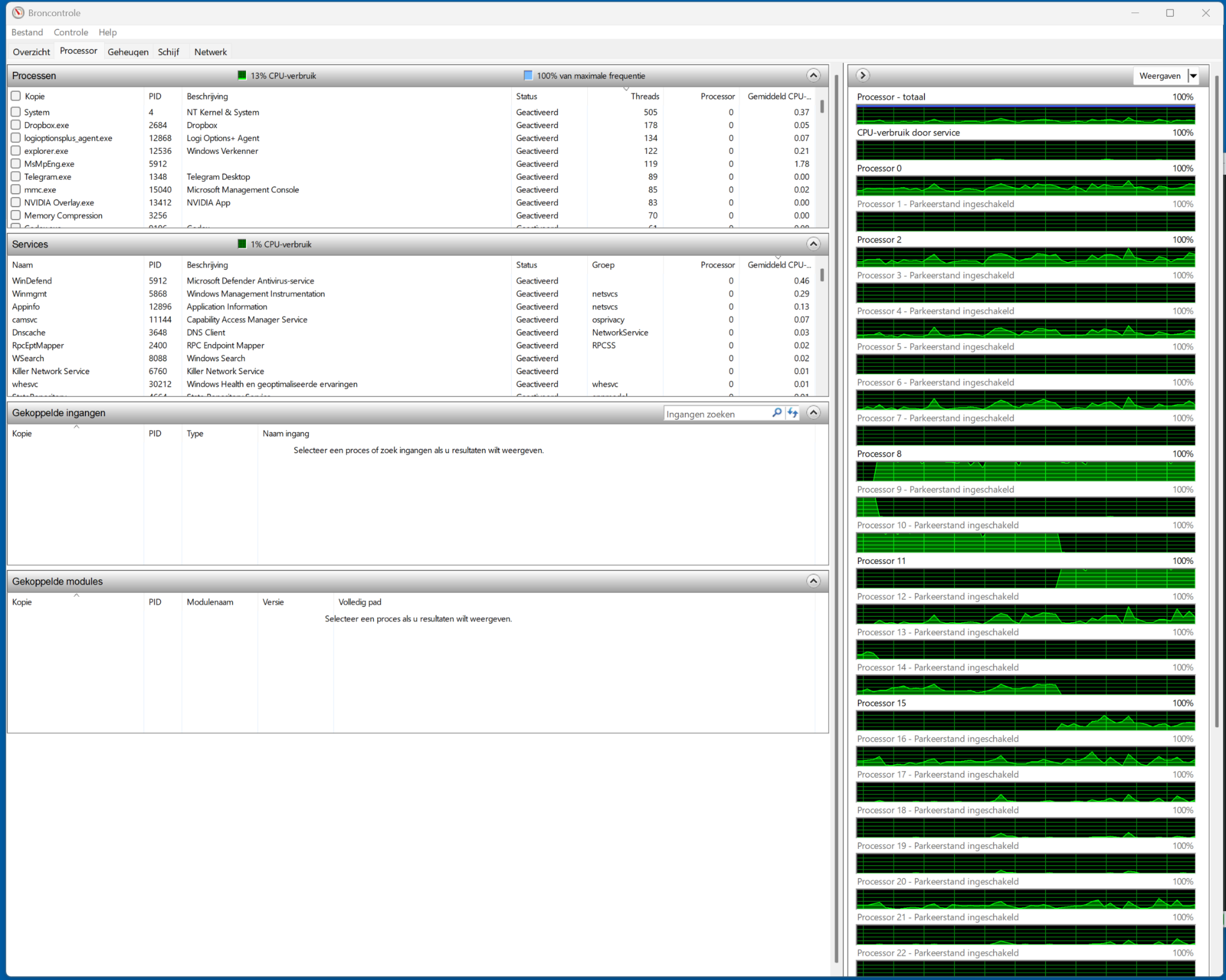

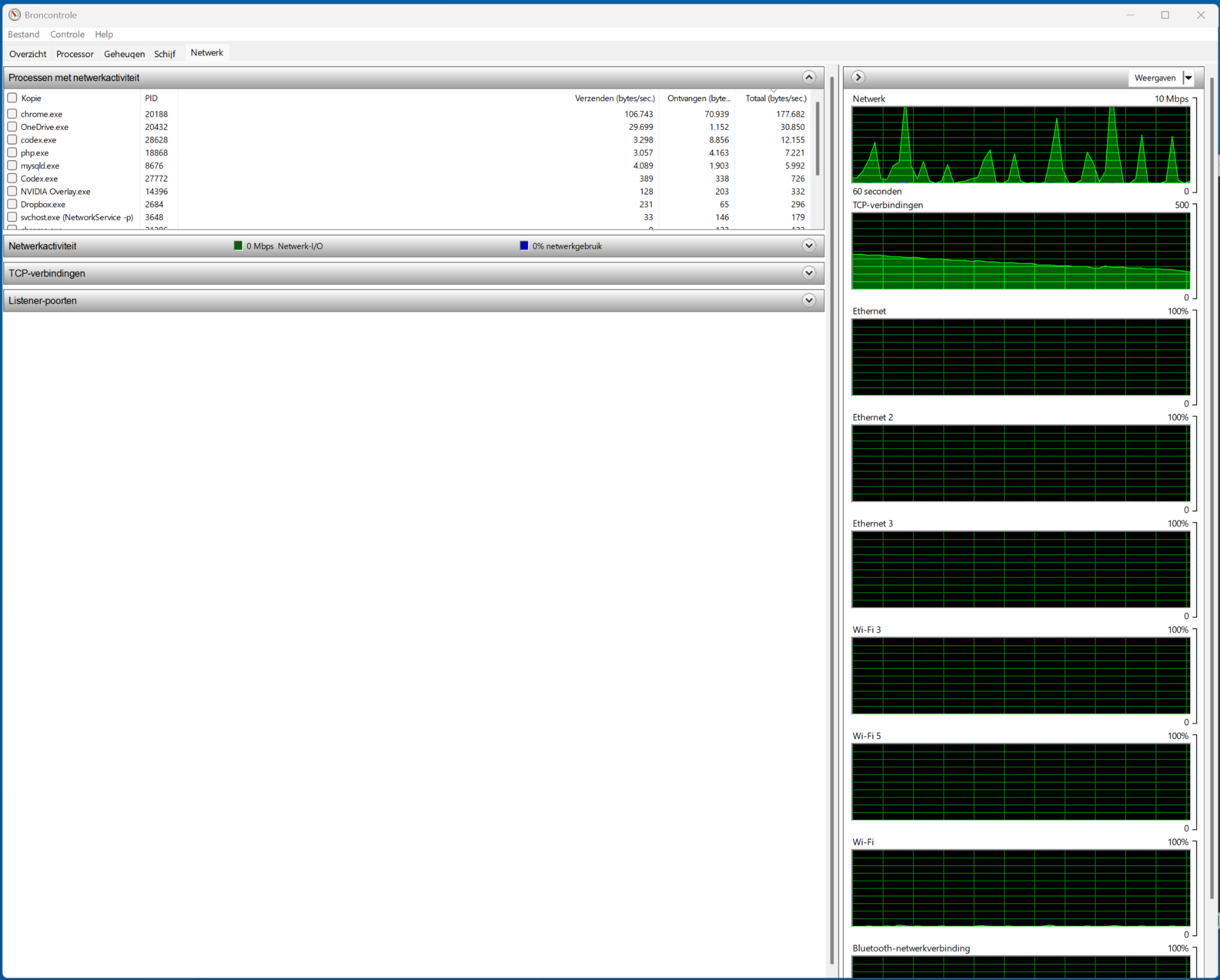

Resource Monitor and Performance Monitor under real workload
During heavy development and AI workloads, Resource Monitor (CPU, disk, network, memory, processor cores, disk activity) and Performance Monitor were captured. This helped place the behaviour around failure moments — the system did seem cooler and more stable at first after the thermal improvement.
Full freeze with the fans still spinning
The laptop froze completely while the fans kept spinning and the system stayed on. In one case it sat like that for eight hours, after which only a long press of the power button helped. During an earlier freeze, background sounds briefly continued while the music stopped — a hint that sometimes the GPU or shell layer hung rather than the whole machine.
SFC, DISM and CHKDSK — no corruption found
sfc /scannow found no integrity violations. chkdsk c: /scan processed over 1.3 million file records and reported no problems, with 0 KB in bad sectors. The DISM /RestoreHealth runs were interrupted (error 1223/1726) but showed no corruption.

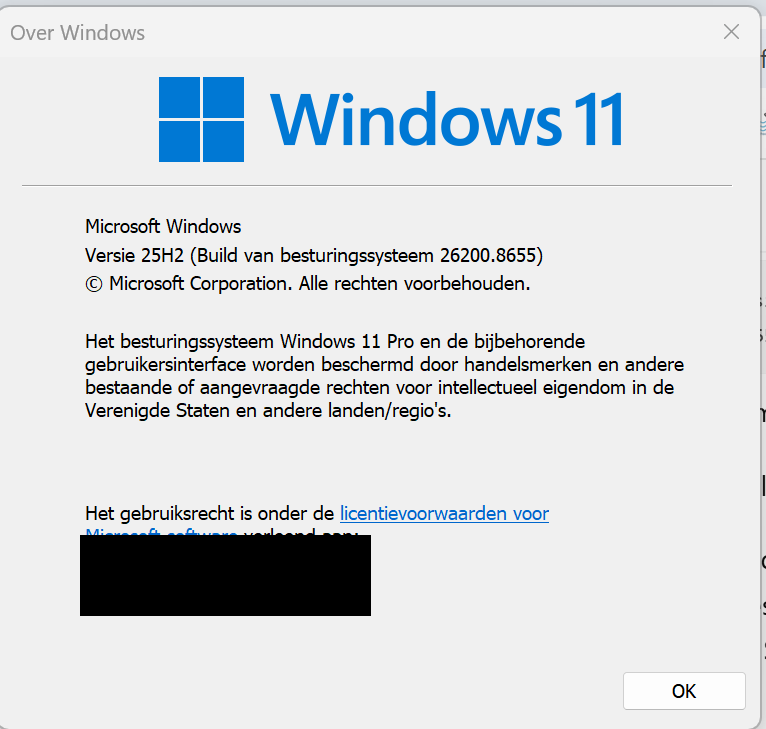

Hyper-V detected, VBS active, Windows 25H2 confirmed
systeminfo reported a detected hypervisor and Virtualization-based Security as Running; Get-PhysicalDisk returned both Samsung disks as OK/Healthy. The install was confirmed via the registry as 25H2, build 26200 (ge_release), from Microsoft media — license name redacted.

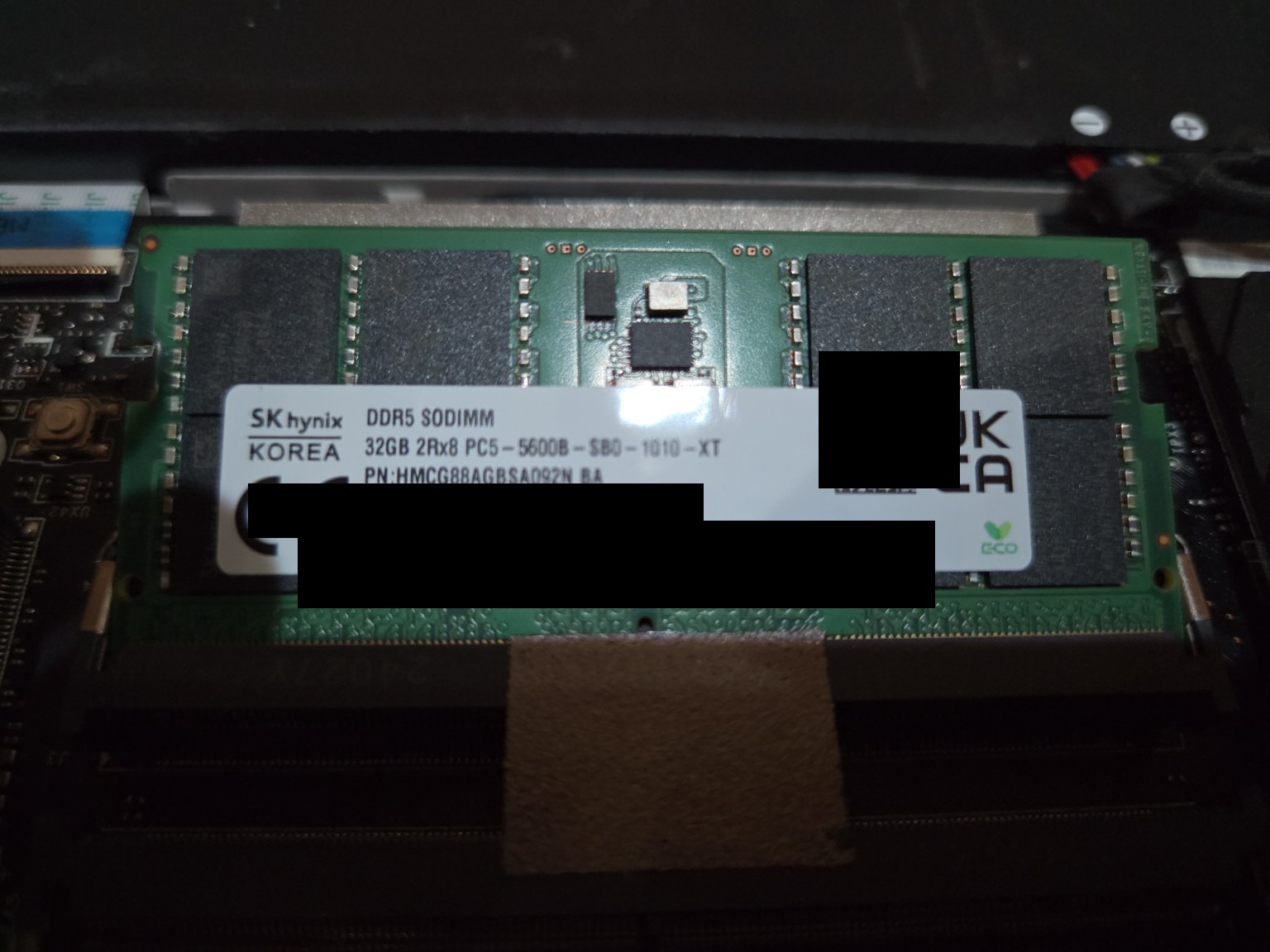

RAM modules (SK hynix) physically inspected
The 128 GB DDR5 consists of SK hynix modules; these were physically inspected (serial number, barcode and QR redacted). A single faulty module remained unlikely, but the memory controller (IMC) at 128 GB stays a theoretical factor on an HX platform.
Basic components excluded, virtualization layer disabled
At this point the Windows image, component store, SSDs, file system, WHEA hardware errors and pure overheating were reasonably excluded. As a test the entire virtualization layer was switched off (VT-x, VT-d, Hyper-V, Memory Integrity), after which VBS read "Enabled but not running" and firmware virtualization was "No". That shifted suspicion from hardware toward the software, filter and platform layer.

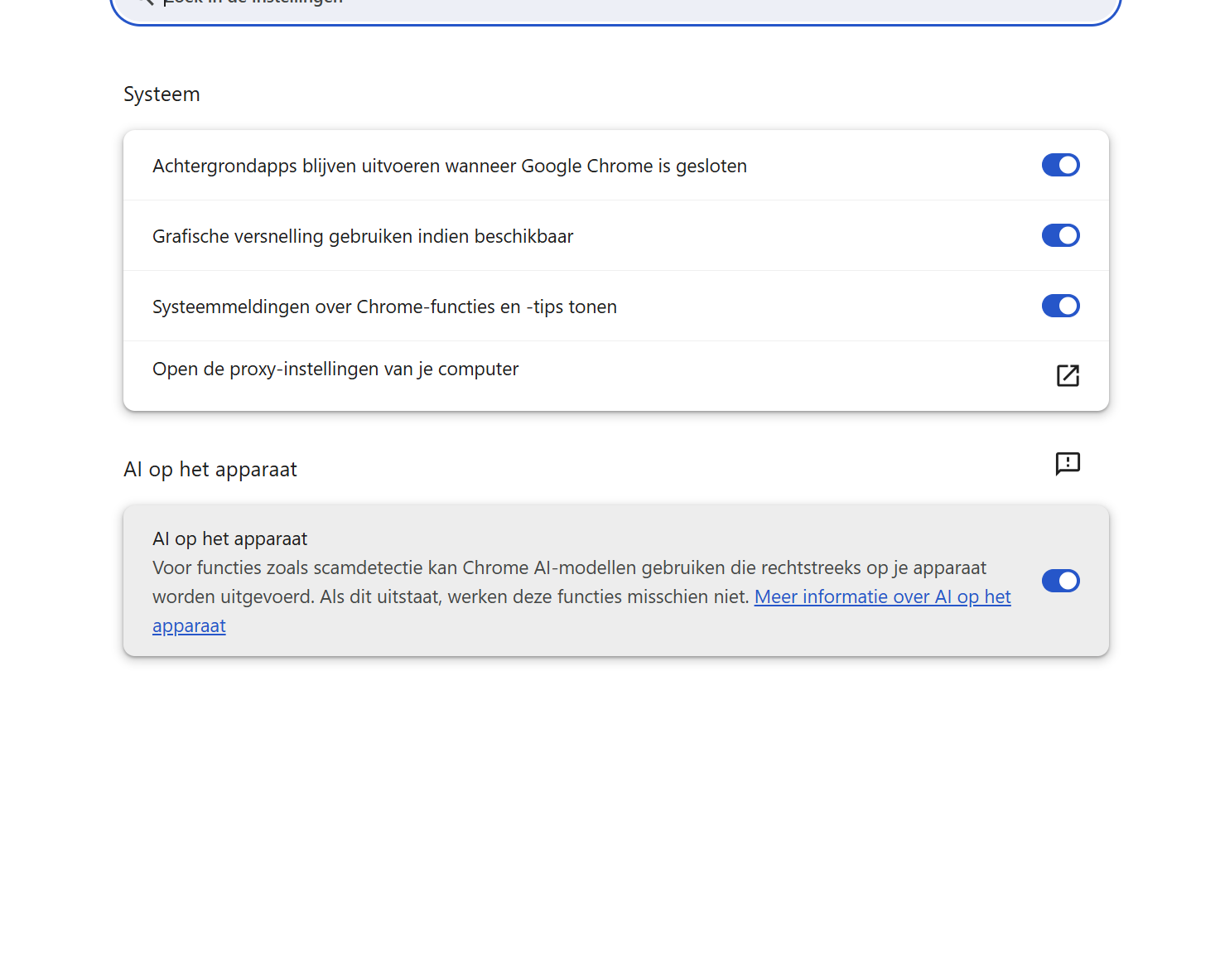

GPU driver reset and Chrome settings as a measuring point
To determine, at the next freeze, whether Windows was still alive or only the display/GPU path had hung, a GPU driver reset (Ctrl+Shift+Win+B) and Chrome settings around hardware acceleration and background apps were set up as fixed checkpoints. Chrome crashed occasionally, but that was kept separate from the kernel bugchecks.

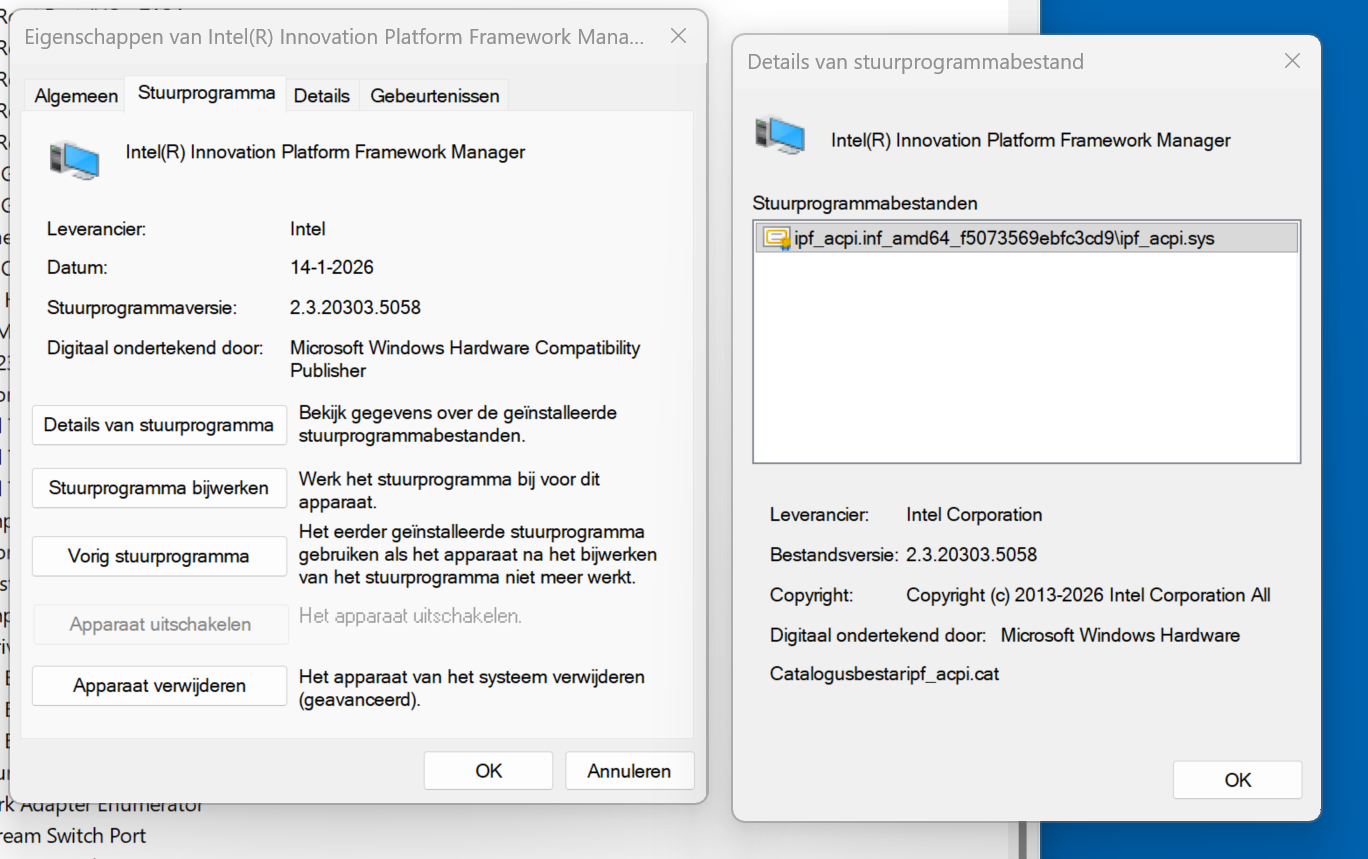

Event log cluster: DCOM, Intel and Dropbox
A wevtutil export of critical/error events showed DCOM registration errors (10010), a time-out of the Intel Platform License Manager Service, and errors from the Dropbox Update Service. Assessed as largely noise — useful to peel away, but not a direct crash cause.
14:11 · 15:07 · 16:30 — bugcheck 0x0000001E
In a single day the machine dropped out three times. At 14:11 came Kernel-Power 41, WER 1001 and bugcheck 0x0000001E (KMODE_EXCEPTION_NOT_HANDLED) with dump 061726-26687-01.dmp. At 15:07 it could no longer even write a dump (volmgr 161, BugCheckProgress 0x53). At 16:30 another unexpected shutdown. This was the clearest signal that the problem was structural, not incidental.

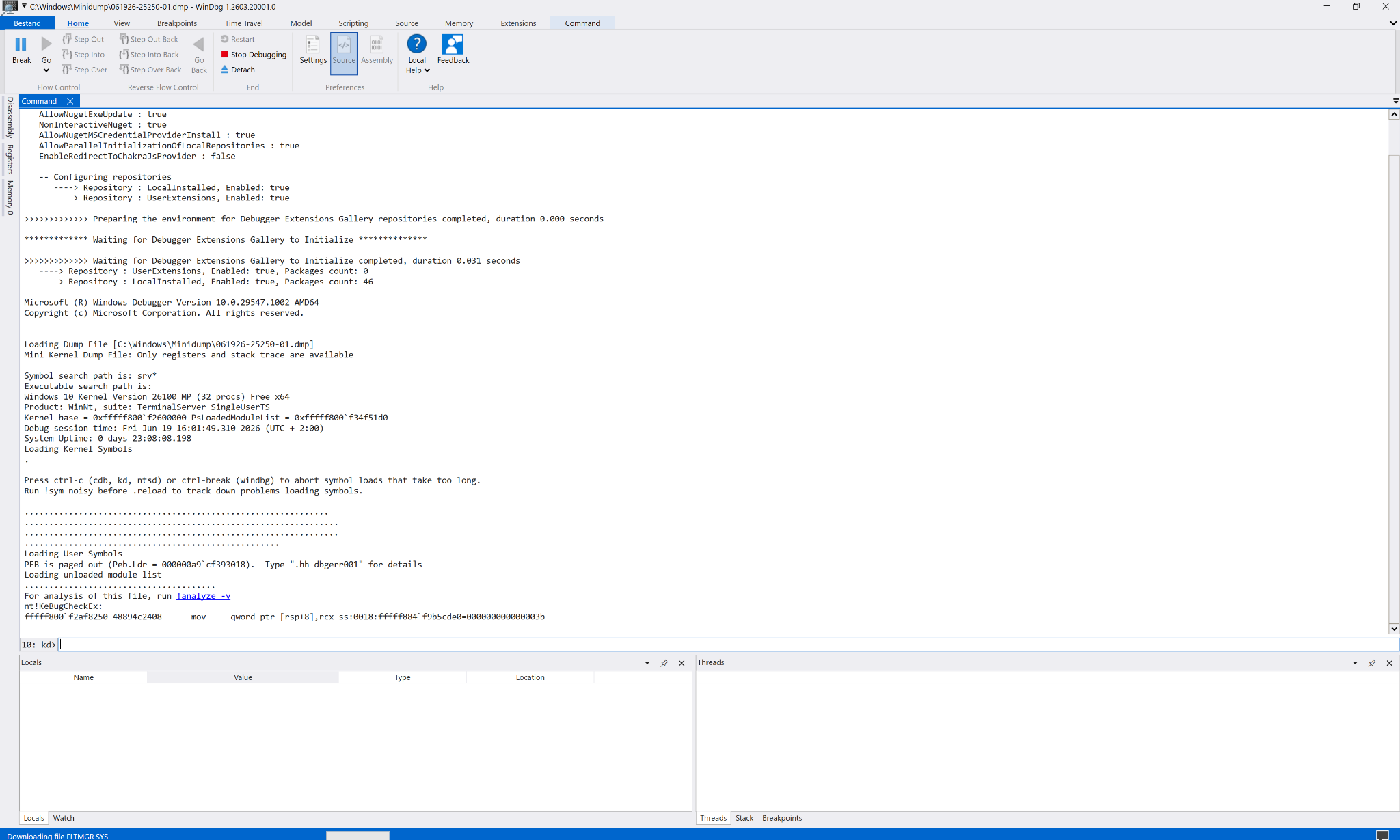

Minidumps opened in WinDbg
The minidumps were loaded into WinDbg and examined with !analyze -v. The analysis confirmed the kernel/platform direction and produced the failure buckets shown further down in the crash dump analysis.

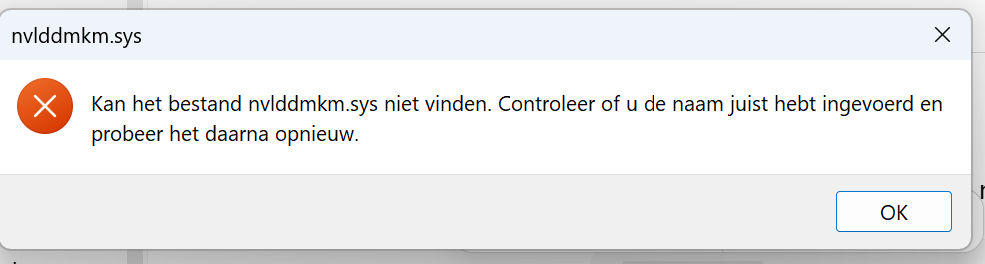

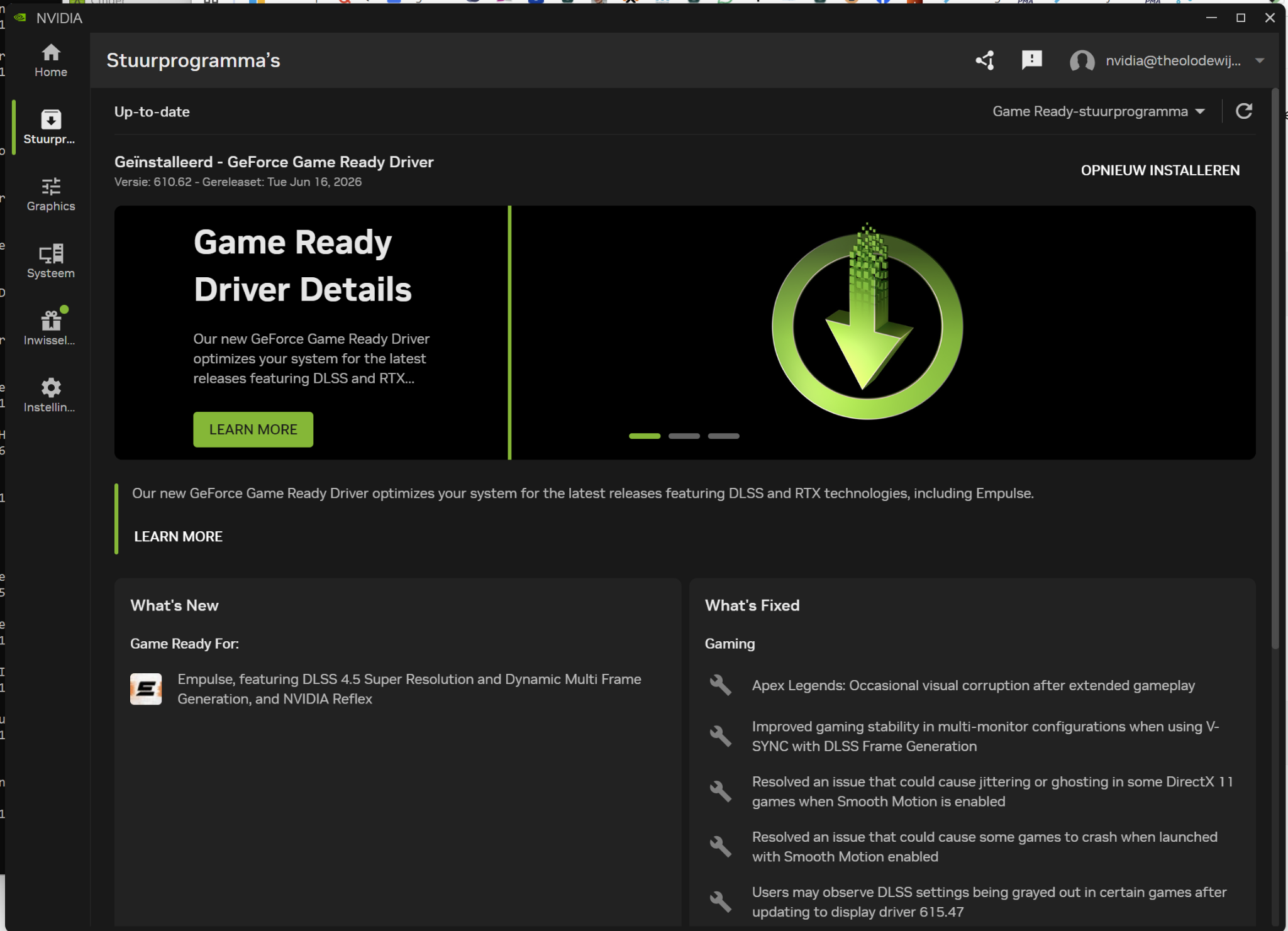

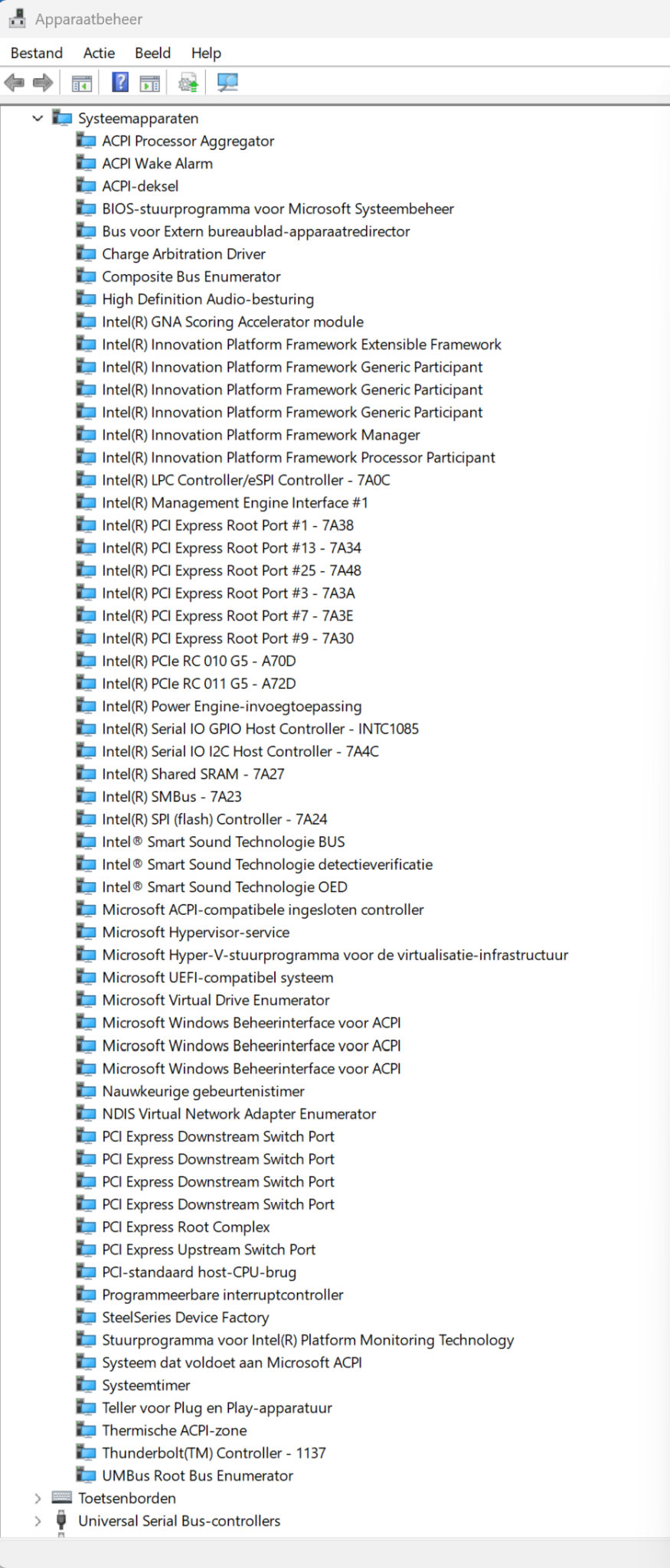

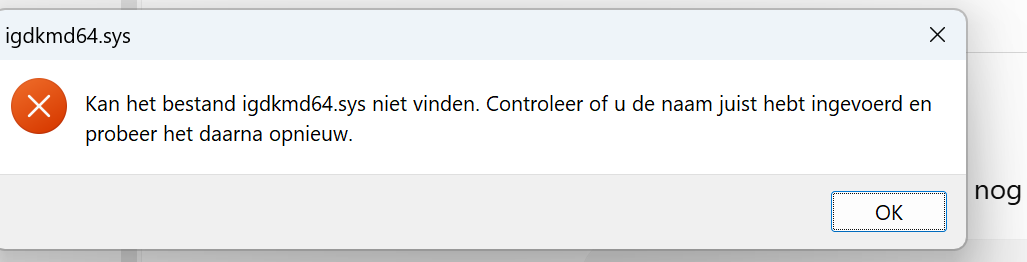

MSI, Intel and NVIDIA drivers under the microscope
With driverquery the vendor drivers were mapped out. Active ones included the MSI kernel driver MsIo64.sys and msihid, Intel platform components, and NVIDIA (Game Ready Driver). This layer weighs heavily: vendor drivers run deep in Windows and can trigger freezes or bugchecks without an obvious application clue.

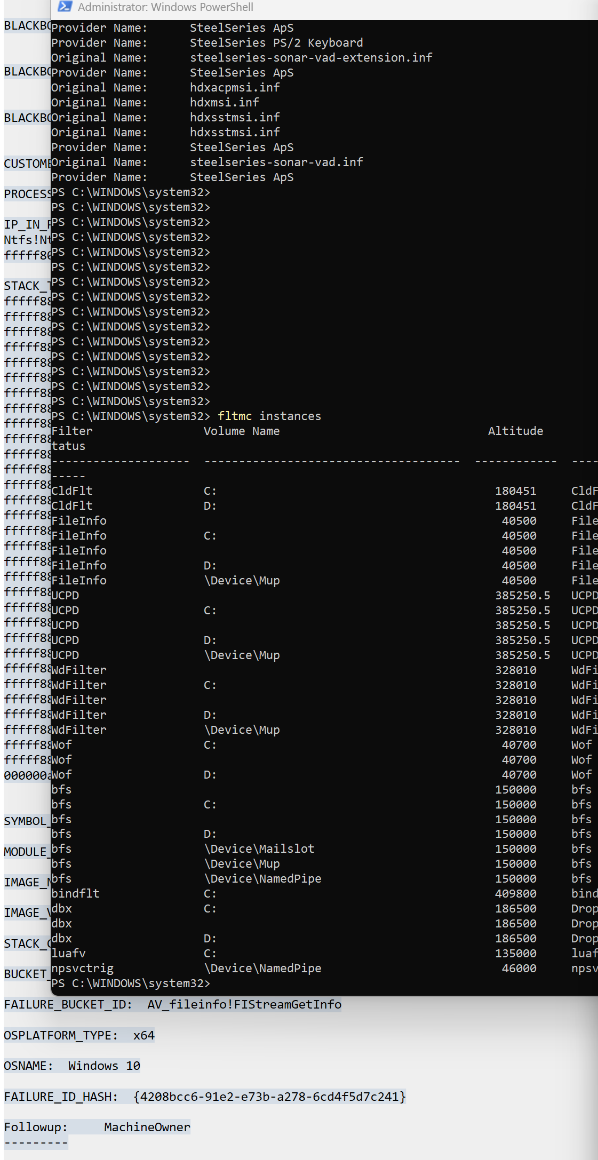

File-system filters, FileInfo/NTFS and cloud sync
Via fltmc instances, minifilters such as CldFlt, FileInfo, WdFilter and Dropbox-related filters appeared, along with a failure bucket pointing to fileinfo/NTFS and a Chrome STATUS_BREAKPOINT. Because heavy local work also happened outside the Dropbox and OneDrive folders, cloud sync became too weak as the sole explanation — but the filter layer stayed a relevant trigger layer.

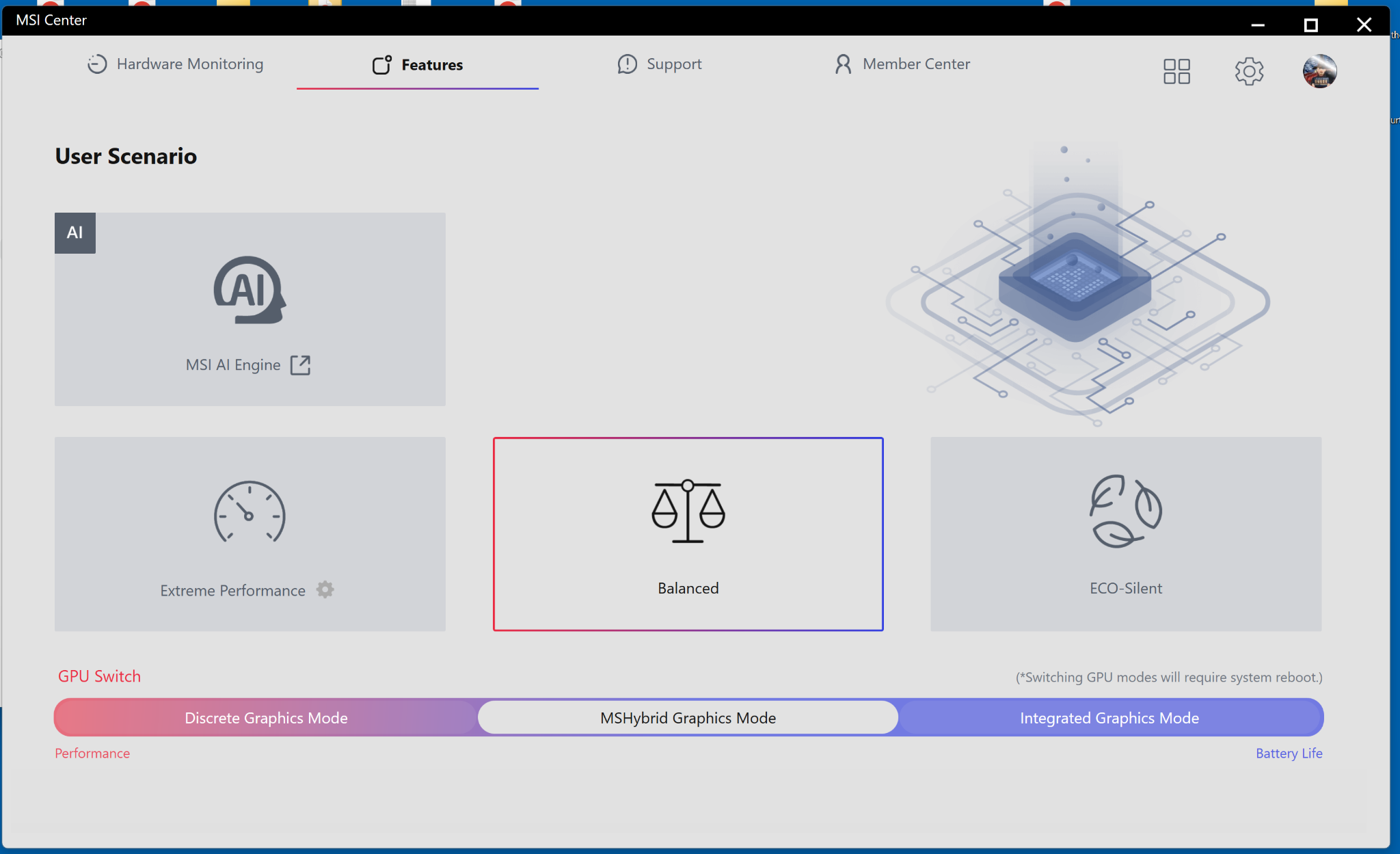

MSI Center: power profile and user scenario
In MSI Center the user scenario / power profile was set to a balanced mode as part of the observation phase — to see whether a calmer power profile helped stability.
Hyper-V: "VMX not present or not enabled in BIOS"
The Hyper-V Hypervisor reported: "Failed to start the hypervisor. VMX is not present or not enabled in the BIOS." Shortly after came another Kernel-Power 41. This confirms the virtualization/firmware settings were not consistent — a sign that firmware and platform play a role.

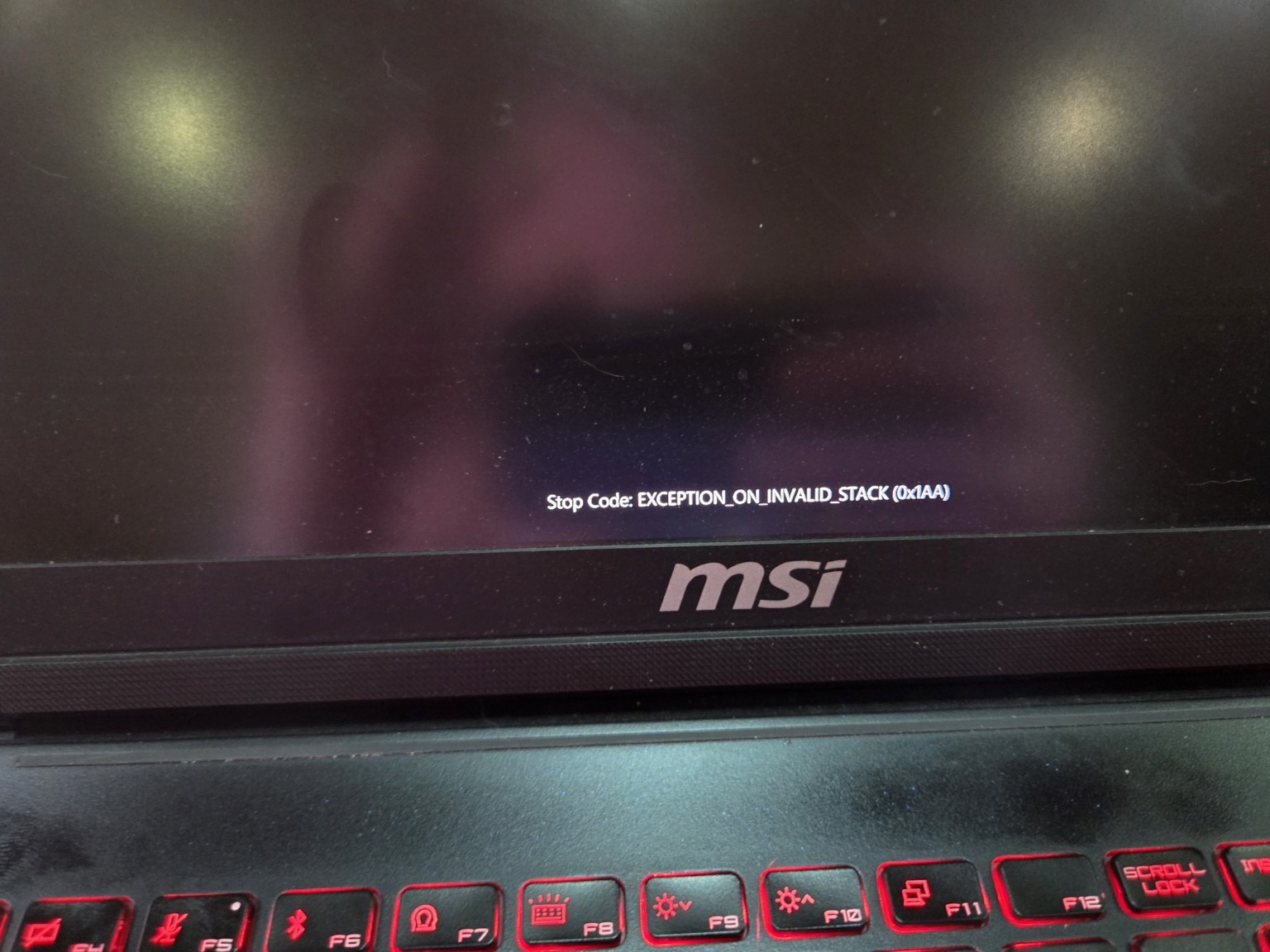

Bugcheck 0x000001AA — exception on an invalid kernel stack
A Get-WinEvent export showed the crash line Kernel-Power 41 (23:46:58), EventLog 6008 and WER 1001 (23:47:17) with bugcheck 0x000001AA (EXCEPTION_ON_INVALID_STACK) and dump 070126-25984-01.dmp. The strongest indication in the entire file: not an ordinary app fault, but kernel-stack corruption or a deep driver/platform interaction.
Support stopped, dossier published
Because the support process offered too little resolution and the instability kept returning, the decision was made to record the findings publicly and verifiably. This page uses only locally available, privacy-safe imagery; recognizable data has been redacted or omitted.
Interventions and what they achieved
This dossier is not only about the failure, but also about the approach. The overview below summarizes what was tried and what it achieved. For readers with a comparable system, the interventions that had an effect are the most valuable — even where they did not definitively solve the problem here.
| Intervention | Effect | Weight |
|---|---|---|
| Intel ME / chipset drivers updated | Clearly noticeable improvement in stability | Partial — important |
| New thermal paste applied | Cooler and temporarily quieter behaviour | Partial |
| Virtualization disabled (VT-x, VT-d, Hyper-V, Memory Integrity) | Suspect platform layer removed; VBS "not running" | Temporary / diagnostic |
| Clean Windows reinstall (Microsoft media) | Old/corrupt install ruled out | No lasting fix |
| GPU driver reset & Chrome settings | Made a hang measurable (GPU / shell / kernel) | Diagnostically useful |
| SFC / DISM / CHKDSK | No corruption or disk errors found | Exclusion |
Crash-dump analysis
Three kernel bugchecks form the hard backbone of this dossier. For each code, the meaning is given below in plain language, with the raw WinDbg fragment collapsible underneath. Individual application crashes are deliberately left out of scope here.
A piece of kernel code or a driver accessed memory at too high an IRQL. Classically a sign of a driver, memory or platform problem — not a user program. This was the first hard bugcheck and set the tone for the rest of the investigation.
An unhandled kernel-mode exception. The failure bucket pointed to a timer/idle/power-management path in the Windows kernel — an area strongly tied to firmware, ACPI and the hypervisor layer.
Show raw WinDbg fragment
KMODE_EXCEPTION_NOT_HANDLED (1e) This BugCheck is issued if a kernel-mode program generated an exception which the exception handler did not catch. Key : Bugcheck.Code.TargetModel Value: 0x1e Key : Failure.Bucket Value: 0x1E_C0000096_nt!HalpHvTimerStop Key : Failure.Exception.IP.Module Value: nt Key : Hypervisor.Flags.AnyHypervisorPresent Value: 1 Key : Dump.Attributes.LastLine Value: Dump completed successfully.
The most serious finding. While handling an exception, the kernel ended up on an invalid kernel stack. That points to corruption of the kernel stack pointer during exception dispatch, or a driver running on an illegal stack. This is no longer a normal Windows or browser fault.
Show raw WinDbg fragment
EXCEPTION_ON_INVALID_STACK (1aa) This BugCheck indicates that exception dispatch crossed over into an invalid kernel stack. This might indicate that the kernel stack pointer has become corrupted during exception dispatch or unwind, or that a driver is executing off of a stack that is not a legal kernel stack. Arguments: Arg1: A pointer to the current stack. Arg2: 0x2 A KeExpandKernelStackAndCallout(Ex) stack Arg3: context record being unwound / dispatched Arg4: ExceptionRecord of the active exception Key : Bugcheck.Code.TargetModel Value: 0x1aa Key : Failure.Bucket Value: 0x1AA_nt!RtlpGetStackLimitsEx Key : Hypervisor.Flags.AnyHypervisorPresent Value: 1
Tests performed and findings
| Test | Result | Conclusion |
|---|---|---|
SFC /scannow | No integrity violations | Windows system files not a prime suspect. |
| DISM CheckHealth / ScanHealth | No corruption (runs partly interrupted: 1223/1726) | No demonstrated component-store damage. |
CHKDSK c: /scan | No errors · 0 KB bad sectors | NTFS and disk structure clean. |
| Get-PhysicalDisk / SMART | Both SSDs OK / Healthy | Storage not the primary suspect. |
| Memory (earlier MemTest + real use) | No clear fault | Single faulty module unlikely; IMC remains a factor. |
| 3DMark Steel Nomad (stability) | 46.2% — NOT PASSED (≥97% required) | Clear instability under GPU load. |
| Thermal paste replaced | Temporarily cooler/stabler, later crashed anyway | Thermals count, but do not explain everything. |
| Intel ME / chipset driver updated | Noticeable improvement in stability | Important gain, but not a full fix — crashes returned later. |
| MSI platform software examined | MSI Center SDK, NBFoundation, True Color present | Considered as a possible factor; not identifiable as the sole cause. |
| Hyper-V / VBS examined | Adjusted; partly needed again for VM work | Relevant, but not a full explanation. |
| Response test during freeze (Caps/Num/GPU reset) | No response | Not an ordinary UI- or GPU-only freeze. |
What has reasonably been ruled out
Healthy; CHKDSK found no errors.Why platform instability is the most likely cause
The most concrete diagnosis based on all collected data is platform instability: a problem in the interplay between the CPU, integrated memory controller, motherboard, EC/BIOS/ACPI, the Intel platform layer and power management. A very low-level driver corrupting kernel memory remains possible, but there is no consistent third-party driver that recurs in every dump. The varied bugchecks, the freezes without a clean shutdown, and the clean Windows/SSD tests together point to the platform layer.
Frequently asked questions
Does this mean all MSI Titan 18 HX laptops are bad?
Is Windows the cause?
What is the most likely cause?
Why does the problem sometimes seem gone?
Evidence gallery
From roughly 200 captured screenshots, 47 representative, privacy-safe images were selected — shown here together — covering BIOS/installation, thermals and cooling, drivers, Event Viewer, PowerShell, WinDbg and crash analysis. Recognizable data (serial numbers, computer name, license name) has been redacted or cropped out. Click a thumbnail to enlarge.
Log files
The raw log files from the investigation remain available for review. Click to open a file directly on the page.
Accountability
This is a factual reconstruction of one specific unit, built from my own measurements and log files. The tone is deliberately businesslike. Before publication, privacy-sensitive data (personal, invoice and address details) has been masked or omitted; the purchase amount, model name and purchase date are shown because they are relevant to the reliability question.
